He suggested shorting the cap before doing the test for two reasons: It can give you quite a shock if it really works if you have just shut the genset down; it can also blow your meter if you don't first discharge it.

I have never tried this test with a digital meter. These use a very low voltage to measure ohms, so it may take a while to build up a charge on the capacitor to show the resstance dropping. I also like to see things change in analogue form rather than chase digits bouncng around and maybe even autoranging confusing things.

But give it a try.

David
__________________
Advertisement

DavidM is online now   Reply With Quote
Old 02-19-2017, 03:37 PM   #22
Technical Guru

Ski in NC's Avatar

City: Wilmington, NC
Country: USA
Vessel Name: Louisa
Vessel Model: Custom Built 38
Join Date: Jan 2014
Posts: 5,841
No worries about discharging cap. Winding loop it is attached to is a dead short with machine off.

Some mid range up DVM's have a microfarad setting for testing caps.

With clever use of ohm or volt setting with a chargeup, you can establish whether it has some capacitor function, but it will not be easy to test conclusively.

And it could just need a flash.
__________________

Ski in NC is offline   Reply With Quote
Old 02-19-2017, 07:30 PM   #23
Guru

City: kemah
Country: USA
Join Date: May 2015
Posts: 1,135
Could just need a flash???
what_barnacles is offline   Reply With Quote
Old 02-19-2017, 08:07 PM   #24
Guru

BruceK's Avatar

Join Date: Oct 2011
Posts: 11,377
Quote:
Originally Posted by what_barnacles View Post
Could just need a flash???
Should be easy, some marinas have a resident flasher, ours does, late at night.
__________________
BruceK
2005 Integrity 386 "Sojourn"
Sydney Australia
BruceK is offline   Reply With Quote
Old 02-20-2017, 09:31 PM   #25
Guru

Egregious's Avatar

City: Sunset Beach, NC
Country: USA
Vessel Name: Polly P.
Vessel Model: Monk 36
Join Date: Feb 2010
Posts: 555
Quote:
Originally Posted by seattleboatguy View Post
Your link to the service manual is fantastic! That should prove very useful to either me or (if necessary) the repair guy. Thanks very much.
Call Westerbeke ((800) 548-6252 ). They are very helpful and you'll get a human being after a few rings. They're used to dealing with the old models. They also have any parts, except for injector pipes, but you can have one of those fabricated at any injector shop.
Egregious is offline   Reply With Quote
Old 02-21-2017, 06:02 AM   #26
Senior Member

City: Norfolk, VA
Country: USA
Vessel Name: Slow Bells
Vessel Model: Marine Trader 38
Join Date: Nov 2013
Posts: 300
Quote:
Originally Posted by Egregious View Post
Call Westerbeke ((800) 548-6252 ). They are very helpful and you'll get a human being after a few rings. They're used to dealing with the old models. They also have any parts, except for injector pipes, but you can have one of those fabricated at any injector shop.
Good idea. Couldn't hurt. Thanks!
seattleboatguy is offline   Reply With Quote
Old 02-22-2017, 06:11 PM   #27
Senior Member

City: Norfolk, VA
Country: USA
Vessel Name: Slow Bells
Vessel Model: Marine Trader 38
Join Date: Nov 2013
Posts: 300
Quote:
Originally Posted by djmarchand View Post
seattleboatguy:

Before you even think about removing and shipping to Broward, check or replace your capacitor. Most are 40 mfd and Amazon has them for less than $10.

To check, disconnect the wires and hook up an analogue ohmmeter set to low range to the terminals. The resistance should start out low and then slowly rise as the capacitor charges to the meter's resistance sensing voltage. If it is immediately high, it is bad.

These fail routinely on marine generators due to heat. So if you have that kind of capacitor excitation, and it looks like you do, then 99% of the time a bad capacitor is what causes no ouput voltage.

David

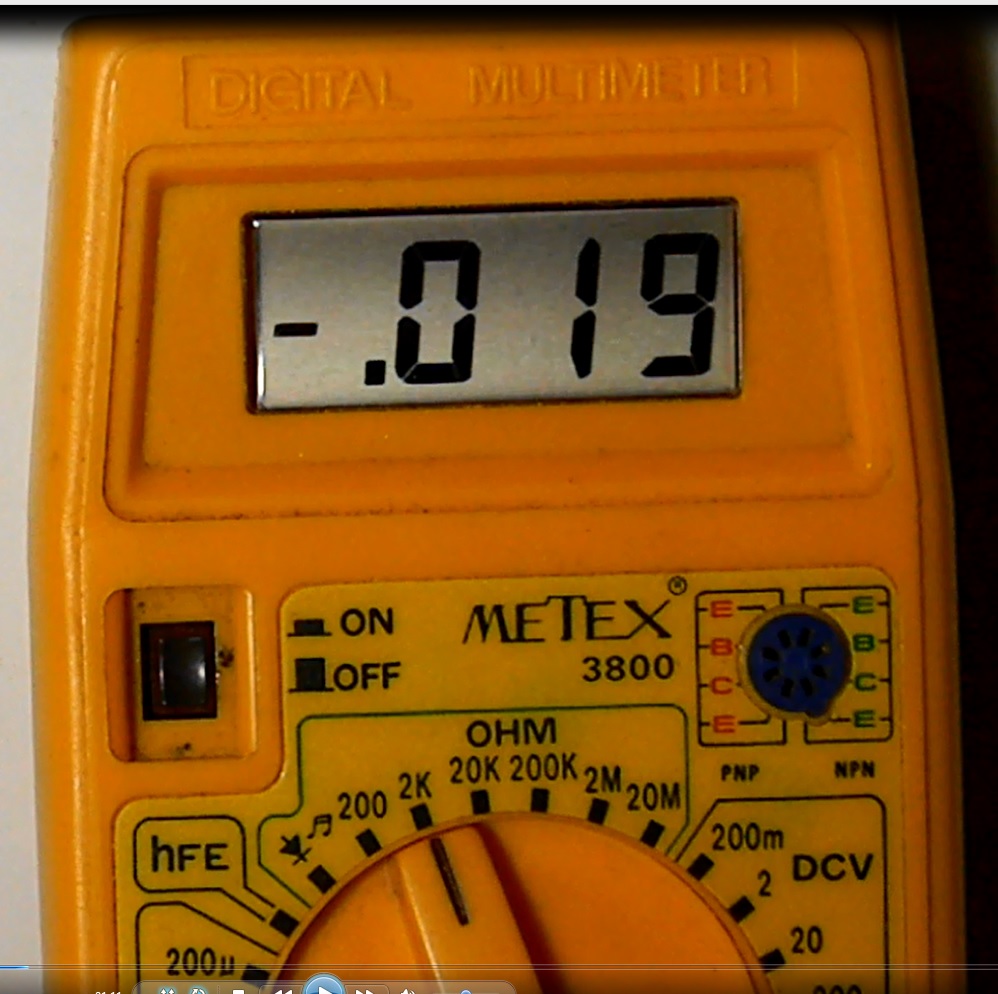

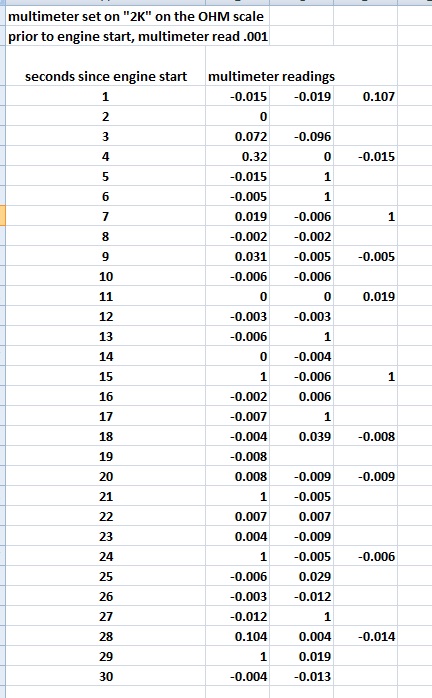

Hi David. I did the test you suggested, made a video while the test was running, then loaded the first 30 seconds of test results into a spreadsheet. Each second, I was able to record 2 or 3 readings from the multimeter. The multimeter was set on "2K" of the "OHM" scale. Before I hit the generator start button, the multimeter read .001 . After I hit the start button, the multimeter readings bounced around quite a bit between -.364 and +1. The test result data is shown below. I could see no clear trend in the data. Does this mean the capacitor is shot?
