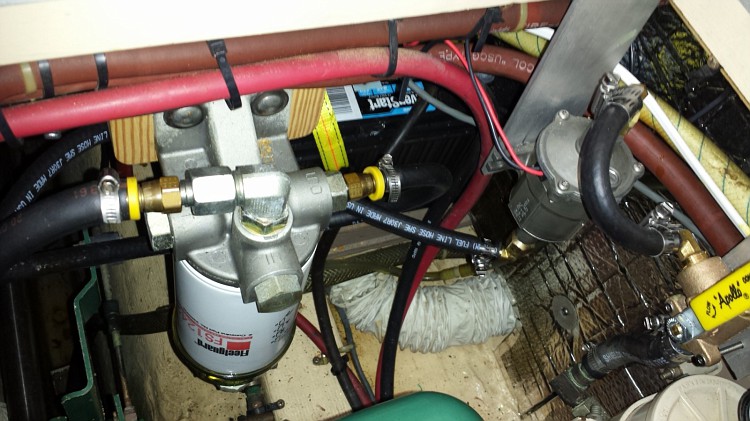

Here is my fuel polisher / transfer pump. All the components except the white Racor 1000 filter separator existed before the refit to be able to transfer fuel from tank to tank. In reconfiguring my system, the pump and valves now only polisher and transfer fuel. This pic was during refit, pardon the dust and lack of labeling. Suction valves are on the bottom drawing from tank drains. Return valves are on top. Pump is a continuous duty 5 GPM Flojet. Filter separator is a Racor 1000 with a 2 micron cartridge. System works very well with a whirlpool effect in the separator bowl, very impressive! There is a Racor vacuum gauge plumbed up to the pilothouse to monitor filter element status.
Ted
