Old 09-24-2013, 11:06 PM   #1
Guru

Alaskan Sea-Duction's Avatar

City: Inside Passage Summer/Columbia River Winter
Country: USA
Vessel Name: Alaskan Sea-Duction
Vessel Model: 1988 M/Y Camargue YachtFisher
Join Date: Jul 2012
Posts: 3,148
Lessons Learned When Changing Racor Filters

Well had an interesting changing the fuel filters. Never doing it before it was trial and error. Let's set this up. Full tanks and some nasty stuff seen thru the bottom glass. Lesson learned:

1. Turn off full fuel tanks before loosening "T" handle. Saves clean up time.
2. Don't stick an oil change pan under filter assembly, then drain fuel into it, only to lean you can't tip pan to remove without dumping all the fuel.
3. Take lots of rags!
4. Have fresh fuel to rinse assembly
5. Take a 5 gallon bucket with you to put contaminated fuel in.....but make sure you have a place to get rid of it.
6. Take your wedding ring off as the fuel will cause it to slip off into the bilge
7. Don't put items on the engines as you will forget them
8. When refilling make sure the valve on the bottom is closed
9. Last but not least, remember to turn the fuel valves on at the tanks before you start your engines!

The second filter went a little better.....
__________________
Advertisement

__________________
1988 M/Y Camargue Yacht Fisher
Alaskan Sea-Duction
MMSI: 338131469
Blog: http://alaskanseaduction.blogspot.com/
Alaskan Sea-Duction is offline   Reply With Quote
Old 09-24-2013, 11:25 PM   #2
Guru

Forkliftt's Avatar

City: Biloxi Mississippi
Country: USA
Vessel Name: Patricia Louise II
Vessel Model: 1983 42' Present Sundeck
Join Date: Oct 2007
Posts: 2,433
Great things to remember! Thanks for sharing!
__________________

__________________
Steve Point Cadet/ Biloxi, Mississippi USA
*Present 42 twin 135 Lehmans
Forkliftt is offline   Reply With Quote
Old 09-25-2013, 12:47 AM   #3
Member

Cantina's Avatar

City: Newport Beach, ca
Vessel Name: CANTINA
Vessel Model: PT Europa Sedan 41
Join Date: Jan 2010
Posts: 19
My racor 500 filters have guages on top where the average has the T handle. I've never changed the filters myself, so assuming the guage on top turns in the same way the T handles do. Am I on the right track?
Cantina is offline   Reply With Quote
Old 09-25-2013, 02:41 AM   #4
Guru

AusCan's Avatar

City: Adelaide
Country: Australia
Vessel Name: Kokanee
Vessel Model: Cuddles 30 Pilot House Motor Sailer
Join Date: Jul 2012
Posts: 2,096
Thanks ASD

I learned about number 5 after a late night checkover to ensure all was ready prior to a big family cruise the next day
Ten minutes into the journey, a loud bang from the engine, then screeching and smoke. Major disaster! Shut down engine and inspect.

I found my dolphin flashlight which I used the previous night had fallen off the top of the engine and wedged itself next to the alternator pulley, now chewed up and half melted.
A big relief after expecting the worst.


Catina,
99% of all threads found on a boat would be counter-clockwise to loosen, looking at it with the threaded end facing away from you. There are a few exceptions, (one end of a turnbuckle) but not many.
AusCan is offline   Reply With Quote
Old 09-25-2013, 06:36 AM   #5
Guru

Join Date: Aug 2012
Posts: 741
I slide a good quality plastic bag up over the filter body to catch fuel dribbles, then empty the bag into a container. Menards has the best plastic bags for the task, Home Depot and Harbor Freight are so, so, grocery stores and Walmart the worst. Always grab a fistful of extra Menards bags at checkout and make a run for it.
Underway is offline   Reply With Quote
Old 09-25-2013, 07:29 AM   #6
Guru

Tom.B's Avatar

City: Cary, NC
Country: USA
Vessel Name: Skinny Dippin'
Vessel Model: Navigator 4200 Classic
Join Date: Jul 2009
Posts: 5,153
Racor 500's (x3) --- I use a mustard squeeze bottle (pressure wash) and a long zip-tie (agitator) to clean the inside of the glass with a super-size ZipLok baggie underneath the drain. Baggie is also where the old filters go.

**The only problem I have is that I have to have fresh fuel to refill. I'm still working out a way to retrieve it from onboard (planning a spigot off my manifold) so I don't have to carry a 1-gallon container of fuel everywhere we go.
__________________
2000 Navigator 4200 Classic
(NOT a trawler)
Tom.B is offline   Reply With Quote
Old 09-25-2013, 09:10 AM   #7
Veteran Member

neworleansrich's Avatar

City: New Orleans
Country: USA
Vessel Name: Catalyst
Vessel Model: 50 ft Power Cat
Join Date: Sep 2013
Posts: 77
One more Racor tip:

Being slightly dyslexic I could never remember which way to turn the drain fitting to open (then close) it. I finally took a marker and wrote "Open" and "Close" near the drain on the appropriate side.

It's so nice to know which way to turn the drain fitting to shut it off while fuel is quickly filling the cup.
neworleansrich is offline   Reply With Quote
Old 09-25-2013, 09:15 AM   #8
Guru

Daddyo's Avatar



City: Cruising East Coast US
Country: USA
Vessel Name: Grace
Vessel Model: DeFever 48
Join Date: Apr 2008
Posts: 2,441
Some really funny stuff! Happens to all of us. Changing my engine mounted filters was such a disaster yesterday that I'm going to eliminate them!
__________________
Mark Bowerman
Brokerage owner and cruiser
Esse Quam Videri
http://graceyachting.com/
Daddyo is offline   Reply With Quote
Old 09-25-2013, 09:34 AM   #9
Guru

Tom.B's Avatar

City: Cary, NC
Country: USA
Vessel Name: Skinny Dippin'
Vessel Model: Navigator 4200 Classic
Join Date: Jul 2009
Posts: 5,153
Quote:
Originally Posted by neworleansrich View Post
Being slightly dyslexic I could never remember which way to turn the drain fitting to open (then close) it. I finally took a marker and wrote "Open" and "Close" near the drain on the appropriate side.
Ahhh... Good one! The weird thing is that the old 500's and the newer ones are different... And I have one of each! It's a bit maddening.
__________________
2000 Navigator 4200 Classic
(NOT a trawler)
Tom.B is offline   Reply With Quote
Old 09-25-2013, 12:11 PM   #10
Guru

Alaskan Sea-Duction's Avatar

City: Inside Passage Summer/Columbia River Winter
Country: USA
Vessel Name: Alaskan Sea-Duction
Vessel Model: 1988 M/Y Camargue YachtFisher
Join Date: Jul 2012
Posts: 3,148
Quote:
Originally Posted by skidgear View Post
I slide a good quality plastic bag up over the filter body to catch fuel dribbles, then empty the bag into a container. Menards has the best plastic bags for the task, Home Depot and Harbor Freight are so, so, grocery stores and Walmart the worst. Always grab a fistful of extra Menards bags at checkout and make a run for it.
Great idea!
__________________
1988 M/Y Camargue Yacht Fisher
Alaskan Sea-Duction
MMSI: 338131469
Blog: http://alaskanseaduction.blogspot.com/
Alaskan Sea-Duction is offline   Reply With Quote
Old 09-25-2013, 02:06 PM   #11
TF Site Team

FlyWright's Avatar

City: California Delta and SF Bay
Country: Sacramento, CA, USA (boat in Vallejo)
Vessel Name: FlyWright
Vessel Model: Marshall Californian 34 LRC
Join Date: Apr 2008
Posts: 10,179
Keep a stack of diapers handy to make the job much cleaner. Many stores charge a buck a piece for them. A pack of 100 can be purchased online and delivered to your house for 30-50 cents per diaper.



__________________
Al

Custom Google Trawler Forum Search
FlyWright is offline   Reply With Quote
Old 09-25-2013, 07:05 PM   #12
Guru

Alaskan Sea-Duction's Avatar

City: Inside Passage Summer/Columbia River Winter
Country: USA
Vessel Name: Alaskan Sea-Duction
Vessel Model: 1988 M/Y Camargue YachtFisher
Join Date: Jul 2012
Posts: 3,148
Quote:
Originally Posted by FlyWright View Post
Keep a stack of diapers handy to make the job much cleaner. Many stores charge a buck a piece for them. A pack of 100 can be purchased online and delivered to your house for 30-50 cents per diaper.



Hey Fly, I have to hugh bags of these back at my dock......I own a Sea Ray!!!
__________________
1988 M/Y Camargue Yacht Fisher
Alaskan Sea-Duction
MMSI: 338131469
Blog: http://alaskanseaduction.blogspot.com/
Alaskan Sea-Duction is offline   Reply With Quote
Old 09-25-2013, 07:39 PM   #13
Senior Member

jukesy's Avatar

City: Victoria BC
Vessel Name: LUCKY US
Vessel Model: American Tug
Join Date: Mar 2013
Posts: 268
The trick I use is to have a couple Gatorade bottles full of clean fuel. Makes it easy and clean to add the fuel and top it off.
jukesy is offline   Reply With Quote
Old 09-25-2013, 08:43 PM   #14
Master and Commander

markpierce's Avatar

City: Vallejo CA
Country: USA
Vessel Name: Carquinez Coot
Vessel Model: 2011 Seahorse Marine Coot hull #6
Join Date: Sep 2010
Posts: 10,265
Quote:
Originally Posted by FlyWright View Post
Keep a stack of diapers handy to make the job much cleaner. Many stores charge a buck a piece for them. A pack of 100 can be purchased online and delivered to your house for 30-50 cents per diaper.



Al, that looks to be a decade's worth. Or does someone have leaking engines?
__________________
Kar-KEEN-ez Koot
markpierce is offline   Reply With Quote
Old 09-25-2013, 09:49 PM   #15
TF Site Team

Bay Pelican's Avatar

City: Chicago, IL
Country: USA
Vessel Name: Bay Pelican
Vessel Model: Krogen 42
Join Date: Oct 2007
Posts: 2,789
On my Lehman 135, I replaced the on engine fuel filters which were a pain to replace with an additional Racor 500. Now not only can I replace the filter in less than a minute but the vacuum gauge warns me if it needs changing. In addition I eliminated one type of fuel filter.

Marty
Bay Pelican is offline   Reply With Quote
Old 09-25-2013, 10:19 PM   #16
GFC
Guru

GFC's Avatar

City: Tri Cities, WA
Country: USA
Vessel Name: Beachcomber
Vessel Model: Sea Ray 550 Sedan Bridge
Join Date: Nov 2012
Posts: 2,695
Tom, it's been interesting to see the various responses between the threads you posted this on. I'd have to give TF the first place medal for having the best quality of comments.
__________________
Mike and Tina
Beachcomber 1995 Sea Ray 550 Sedan Bridge
GFC is offline   Reply With Quote
Old 09-25-2013, 10:24 PM   #17
Guru

Moonstruck's Avatar

City: Hailing Port: Charleston, SC
Country: USA
Vessel Name: Moonstruck
Vessel Model: Sabre 42 Hardtop Express
Join Date: Nov 2008
Posts: 7,849
Quote:
Originally Posted by markpierce View Post
Al, that looks to be a decade's worth. Or does someone have leaking engines?
That's good, Al. I see they are not onto what you really use them for.
__________________
Don on Moonstruck
Sabre 42 Hardtop Express & Blackfin 25 CC
When cruising life is simpler, but on a grander scale (author unknown)
http://moonstruckblog.wordpress.com/
Moonstruck is offline   Reply With Quote
Old 09-25-2013, 11:11 PM   #18
Guru

Alaskan Sea-Duction's Avatar

City: Inside Passage Summer/Columbia River Winter
Country: USA
Vessel Name: Alaskan Sea-Duction
Vessel Model: 1988 M/Y Camargue YachtFisher
Join Date: Jul 2012
Posts: 3,148
It made changing the genny filter a lot easier. But in CA the trouble comes when trying to depose of the dirty fuel.
__________________
1988 M/Y Camargue Yacht Fisher
Alaskan Sea-Duction
MMSI: 338131469
Blog: http://alaskanseaduction.blogspot.com/
Alaskan Sea-Duction is offline   Reply With Quote
Old 09-26-2013, 01:03 AM   #19
TF Site Team

FlyWright's Avatar

City: California Delta and SF Bay
Country: Sacramento, CA, USA (boat in Vallejo)
Vessel Name: FlyWright
Vessel Model: Marshall Californian 34 LRC
Join Date: Apr 2008
Posts: 10,179
Quote:
Originally Posted by markpierce View Post
Al, that looks to be a decade's worth. Or does someone have leaking engines?
That IS a large supply, but they make great party favors at the dock parties. Every boater loves free and every boater needs oil diapers at one time or another. If you play it right, you can paylay a couple of diapers into a free night of drinking!

We all have leaky engines, Mark. Oh sure, your engine might not be leaking externally yet, but given enough time, it will. And when that day comes, you'll be wishing you had a few diapers to lay down.


Quote:
Originally Posted by Moonstruck View Post
That's good, Al. I see they are not onto what you really use them for.
I'm not that old yet, Moon Man. But like I said to The Coot, we'll all get there eventually, so I'm prepared!

Quote:
Originally Posted by Alaskan Sea-Duction View Post
It made changing the genny filter a lot easier. But in CA the trouble comes when trying to depose of the dirty fuel.
Tom, most landfills in the state can take 'hazardous waste', but it's supposed to come from residents, not out-of-state aliens like you. Of course, if you were an illegal alien, then we'd probably pay you to drop it off.
__________________
Al

Custom Google Trawler Forum Search
FlyWright is offline   Reply With Quote
Old 09-26-2013, 06:43 AM   #20
Dauntless Award

Wxx3's Avatar

City: New York, NY
Country: USA
Vessel Name: Dauntless
Vessel Model: Kadey Krogen 42 - 148
Join Date: Jan 2013
Posts: 2,313

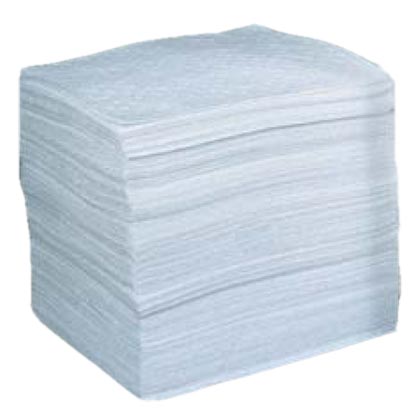

ESP Coldform2 Oil - Only Cellulose Sorbent Pad, 18" Length, 16" Width, 29 Gal/Pkg (Pack of 200) on Amazon for $38.
__________________

__________________
M/Y Dauntless, New York
a Kadey Krogen 42 Currently https://share.delorme.com/dauntless
Blog: https://dauntlessatsea.com
Find us: https://share.delorme.com/dauntless
Wxx3 is offline   Reply With Quote
