Old 11-06-2016, 02:54 PM   #1
Member

Peter Knowles's Avatar

City: Victoria BC
Country: Canada
Vessel Name: Geordie
Vessel Model: 1953 38' Monk Tricabin
Join Date: Nov 2016
Posts: 12
Hello from Victoria BC.

Hello all, my name is Peter Knowles and I'd like to introduce myself.
I'm a lifelong boater, sailed since a young lad. Now restoring and living aboard a 1953 38' Monk cruiser in Victoria BC.
I have ambitious cruising plans for the PNW and then possibly an overland ride to the Great Lakes and a few loops around America's Great Loop.

It seems passagemaking in wooden boats is a thing of the past, but I'm the sort of fellow to endure the perils.

I hope to be an active participant here in time.

Best Cheers
Peter

__________________
Advertisement

Peter Knowles is offline   Reply With Quote
Old 11-06-2016, 02:58 PM   #2
Senior Member

City: South East
Country: France
Join Date: Aug 2016
Posts: 473

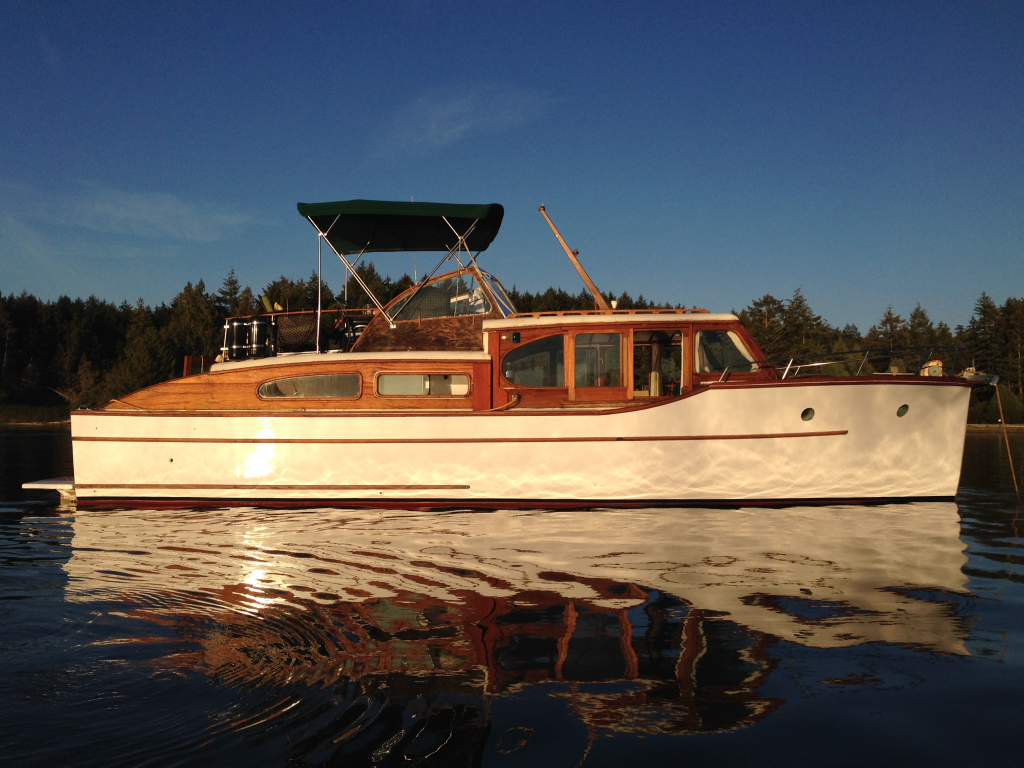

What a glorious boat !
Welcome to TF.
Best wishes.
__________________

__________________
P.
Pilou is offline   Reply With Quote
Old 11-06-2016, 02:59 PM   #3
Guru

rochepoint's Avatar

City: Sidney BC
Country: Canada
Vessel Name: Rochepoint
Vessel Model: 1985 Cheer Men PT38 Sedan
Join Date: Apr 2009
Posts: 1,285
Beautiful vessel, welcome aboard from Sidney BC..........
__________________
Cheers Mike Barge
MV Rochepoint
Sidney, British Columbia.
Yes, I have my "Excel AnchorRight"
rochepoint is offline   Reply With Quote
Old 11-06-2016, 03:44 PM   #4
Enigma

RT Firefly's Avatar

City: Slicker?
Country: Bumpkin?
Join Date: Oct 2007
Posts: 10,845
Greetings,
Welcome aboard eh? Um, your avatar description lists Geordie as an 1853. Might want to change that...
__________________
RTF
RT Firefly is online now   Reply With Quote
Old 11-06-2016, 04:08 PM   #5
Senior Member

IRENE's Avatar

City: Port Angeles, WA
Country: USA
Vessel Name: Irene
Join Date: Jan 2016
Posts: 436
Greetings Peter...from across the strait. Welcome. I have only been here for a short time, but have learned a volume. There are many wise ones here.

So, what powers GEORDIE?

See you out there -

Jeff
IRENE is offline   Reply With Quote
Old 11-06-2016, 05:03 PM   #6
Member

Peter Knowles's Avatar

City: Victoria BC
Country: Canada
Vessel Name: Geordie
Vessel Model: 1953 38' Monk Tricabin
Join Date: Nov 2016
Posts: 12
Pilou,
Thank you for the welcome and kind words.


Mike,
Thanks for the welcome neighbor, had Geordie out at Vector boatyard last spring.


RTF,
Thanks, Geordie is old, but perhaps not quite that old.


Jeff,
Appreciate the welcome. Geordie sports a Perkins 6.354 which proudly propelled us all through the southern Gulf Islands this summer. But I suspect, given ambitious cruising plans, a BetaMarine 60 is in our future.
Peter Knowles is offline   Reply With Quote
Old 11-06-2016, 07:07 PM   #7
Guru

rochepoint's Avatar

City: Sidney BC
Country: Canada
Vessel Name: Rochepoint
Vessel Model: 1985 Cheer Men PT38 Sedan
Join Date: Apr 2009
Posts: 1,285
Quote:
Originally Posted by Peter Knowles View Post
Geordie sports a Perkins 6.354 which proudly propelled us all through the southern Gulf Islands this summer. But I suspect, given ambitious cruising plans, a BetaMarine 60 is in our future.
Peter, I would really like to hear more about this. The Perkins 6.354 is rated at 112/120HP and the BetMarine 60 is rated at 56HP, I can't get my head around a HP drop to half of what's in the boat.....
__________________
Cheers Mike Barge
MV Rochepoint
Sidney, British Columbia.
Yes, I have my "Excel AnchorRight"
rochepoint is offline   Reply With Quote
Old 11-06-2016, 07:49 PM   #8
Member

Peter Knowles's Avatar

City: Victoria BC
Country: Canada
Vessel Name: Geordie
Vessel Model: 1953 38' Monk Tricabin
Join Date: Nov 2016
Posts: 12
Hi Mike,

Damn I hate vBulletin forum software, always seems to lose my typing.
Just rewrote this entire post!

You have a valid point and I admit I only mentioned the Beta 60 casually, Iím also considering the 90.
But I do believe the boat is overpowered.
At hull speed of 8 and change the engine is only at about 1/3 throttle and at what I like to think of as a wake based efficient speed of about 7 knots the big Perkins is only ticking over. Several sources estimate hull speed load at about 42hp.
Now having lots of experience at sea I understand there are times when reserve power is required, but I consider that emergency situations. And in those situations, roaring past recommended RPM is justified.

I also believe peak engine efficiency is at peak torque, in the case of the Beta 60, thatís 1700 RPM giving 42 HP, my magic number for hull speed. Less a little for mechanical loss takes me to my favorite wake based speed.

This also puts me squarely in the 70% loading that diesels love.

So on paper the 60 is perfect, the 90 only buys me some more oomph against headwinds.
Plus an extra $5K and a rather tight fit.

Welcome your, and everyone elseís thoughts.

I should say that I am resistant to knee jerk overpowering, I recently hauled a 24í Airstream all over North America with a 1962 Land Rover,........OK, it has a Chev V6 but still only about 160hp.
Some of the story here,...Travels With Geordie

Peter
Peter Knowles is offline   Reply With Quote
Old 11-06-2016, 08:02 PM   #9
Member

Peter Knowles's Avatar

City: Victoria BC
Country: Canada
Vessel Name: Geordie
Vessel Model: 1953 38' Monk Tricabin
Join Date: Nov 2016
Posts: 12
I should add,

The boat was renamed after my dog Geordie. who I will lose soon.

My previous travels by road are documented in a blog named Travels with Geordie, with apologies to John Steinbeck. In this way, even when he's gone, I'll still be "travelling with Geordie"

The blog stops dead the day I arrived in Victoria, almost two years ago,...
I guess it felt like home,...

Hope that clears up any confusion,.....


Peter
Peter Knowles is offline   Reply With Quote
Old 11-06-2016, 08:46 PM   #10
Senior Member

IRENE's Avatar

City: Port Angeles, WA
Country: USA
Vessel Name: Irene
Join Date: Jan 2016
Posts: 436
Peter,

This went around the world on 55hp -

Name:  image.jpeg
Views: 290
Size:  26.5 KB
IRENE is offline   Reply With Quote
Old 11-06-2016, 09:30 PM   #11
Guru

Crusty Chief's Avatar

City: Las Vegas/Portland
Country: USA
Vessel Name: Pairadice
Vessel Model: Selene 47
Join Date: Jul 2014
Posts: 1,043
Welcome Peter to the "Clan"!
We may of seen you during the summer during our trip.
Hope you are able to provide all of us with your stories and more importantly, a different perspective.

Cheers,
__________________
John & Tracey
Pairadice S4714
http://mvpairadice.blogspot.com/
" I can explain, but I can't make you understand"
Crusty Chief is offline   Reply With Quote
Old 11-06-2016, 10:23 PM   #12
Guru

Moonfish's Avatar



City: Port Townsend, WA
Country: USA
Vessel Name: Traveler
Vessel Model: Cheoy Lee 46 LRC
Join Date: Nov 2011
Posts: 806
Welcome to you and your lovely boat!
__________________
Darren
Port Townsend, WA
m/v Traveler - '79 Cheoy Lee 46 LRC
https://www.pacificnwboatertested.com
Moonfish is offline   Reply With Quote
Old 11-06-2016, 10:44 PM   #13
GFC
Guru

GFC's Avatar

City: Tri Cities, WA
Country: USA
Vessel Name: Beachcomber
Vessel Model: Sea Ray 550 Sedan Bridge
Join Date: Nov 2012
Posts: 3,050
Peter, welcome to TF. You live and boat in one of my favorite places in the whole PNW.
__________________
Mike and Tina
Beachcomber 1995 Sea Ray 550 Sedan Bridge
GFC is online now   Reply With Quote
Old 11-07-2016, 10:18 AM   #14
Guru

Bob Cofer's Avatar

City: Caimanera
Country: Cuba
Vessel Name: On the Beach in Cuba
Join Date: Aug 2013
Posts: 1,106
Peter,

Welcome! It is great to see another wood boat caretaker on the forum. Think I may have seen you around Montague/Saltspring this last summer.

Your re-power plans are very intriguing. Is it a matter of fuel consumption, size, weight, noise or something else? I have been kicking around the idea but cannot seem to justify the cost vs benefit in my case. Those are a lot of boat bucks that I can use somewhere else.

Cheers,
Bob
__________________
What kind of boat is that?
Bob Cofer is offline   Reply With Quote
Old 11-07-2016, 10:33 AM   #15
Guru

Alaskan Sea-Duction's Avatar

City: Inside Passage Summer/Columbia River Winter
Country: USA
Vessel Name: Alaskan Sea-Duction
Vessel Model: 1988 M/Y Camargue YachtFisher
Join Date: Jul 2012
Posts: 3,879
Welcome Peter. A friend of mine has a 1948 Monk here on the Columbia River. Looks just like yours. Great boat.
__________________
1988 M/Y Camargue Yacht Fisher
Alaskan Sea-Duction
MMSI: 338131469
Alaskan Sea-Duction is offline   Reply With Quote
Old 11-07-2016, 11:06 AM   #16
Member

Peter Knowles's Avatar

City: Victoria BC
Country: Canada
Vessel Name: Geordie
Vessel Model: 1953 38' Monk Tricabin
Join Date: Nov 2016
Posts: 12
Thank you all for the kind welcomes.
This is such a friendly place.


Bob, the repower is for a number of reasons, principally reliability.
I love this old Perkins but it's had some abuse, the boat was neglected by the previous owner and seawater rose to destroy the original oil pan by electrolysis.
I don't think anyseawater ever got pumped through the oil passages but I cant be sure.
Every system on the engine has been patched together, it's keel cooled, awkwardly.
I have to start it on ether to avoid a smoke plume and a slick in the water.
Once running, it's sweet and almost smoke free, love the sound!

When I had it out to replace the oil pan, I saw they had cut the floors (wooden boat speak for beams tying the frames together) right down to the frames to fit this beast in, all strength lost.
So although the cost is frightful, I really want to restore those floors and have the peace of mind.


If you're interested there's a thread about the restoration and a little about the engine in a thread on the WoodenBoat Forum.


Cheers
Peter
Peter Knowles is offline   Reply With Quote
Old 11-07-2016, 12:07 PM   #17
Guru

Bob Cofer's Avatar

City: Caimanera
Country: Cuba
Vessel Name: On the Beach in Cuba
Join Date: Aug 2013
Posts: 1,106
Peter,

Great thread on WoodenBoat!

Here is ours: Transformation Continues

I like the fact that you are making changes to suit your needs. Too often we are constrained by the "norm".

One question, is your boat bonded?

Bob
__________________
What kind of boat is that?
Bob Cofer is offline   Reply With Quote
Old 11-07-2016, 12:39 PM   #18
Guru

Nomad Willy's Avatar

City: Concrete Washington State
Country: USA
Vessel Name: Willy
Vessel Model: Willard Nomad 30'
Join Date: Oct 2007
Posts: 14,582
Peter,
Not everybody here is addicted to HP. However my knee jerk input is to think in terms of 75 to 85hp and 50 to 60% load. With 60hp you probably won't want to run at hull speed. Most all FD boats operate at one knot below HS (where drag is much less) and many aren't even capable of HS.

IMO you should need about 6 or 7 hp per ton of displacement. That may vary a bit re hull design. Full Displacement boats require 3 to 5hp per ton. My boat is FD and 8 tons .. requires about 4hp per ton. I've got about 5. And don't quite need that. Your boat is SD and if she was an average trawler she'd need 1.5 to almost twice the power of a FD boat. Yours should be closer to 1.5 times as much power as a FD boat.
Consider how much power the old Monks had in the day w their flat head gas engines. That could be a good yardstick.

I'd be looking up Klassen to consider Isuzu and Mitsubishi line of engines. Klassen in Seattle (where I bought my Mitsu) has been absorbed by Hatton in Ballard/Seattle. Klassen may be alive and well just south of Vancouver. They service the north fishing fleet and have since the 60's. They will have an engine for yo much cheaper than a Beta w much better service. If they still exist. Klassen became Yukon Power Systems in Seattle under the Hatton umbrella several years ago. You could call Jim Schiller at 206 784 0148 for further info. Or source Klassen in Canada. Don't know if it would be economically effective to import from Yukon.

Welcome to TF. I'm across the channel in LaConner.
__________________
Eric

North Western Washington State USA
Nomad Willy is online now   Reply With Quote
Old 11-07-2016, 08:16 PM   #19
Member

Peter Knowles's Avatar

City: Victoria BC
Country: Canada
Vessel Name: Geordie
Vessel Model: 1953 38' Monk Tricabin
Join Date: Nov 2016
Posts: 12
Bob,


Love the new look.
I never liked forward fly bridges, but I do like my lower, aft cabin bridge deck.
Much more demure.


Good question re. bonding.
I'm completely rewiring and am paying very close attention to this critical issue.
I've removed all the bonding for now, and will probably stay that way, but will be using a high tech voltage balancing system for key structures.
I'm fastened with clinched galvanized nails which are still in very good shape and I want to keep them that way. Because I won't be able to remove them to refasten and I don't want different metals.


Peter
Peter Knowles is offline   Reply With Quote
Old 11-07-2016, 08:53 PM   #20
Member

Peter Knowles's Avatar

City: Victoria BC
Country: Canada
Vessel Name: Geordie
Vessel Model: 1953 38' Monk Tricabin
Join Date: Nov 2016
Posts: 12
Eric,

Thanks for your thoughts.
Although I'm relatively new to power boats I've given it a lot of thought.
My natural inclination is that semi displacement is a marketing term.
To me if you're not up on a plane, you're sitting in the water.
Now there are certainly better bottom shapes, and the slipperyest is a canoe. pushing the water apart at the bow and allowing it's natural return to pinch the stern along forward. Problem is if you try to exceed hull speed you create a big void because the water hasn't returned against the hull in time. Thus massive wake.
Monk and others at the time, developed better bottoms to allow their boats to be pushed past hull speed without so great a loss, and you are correct, mine is a very sweet shape with a deep forefoot and almost flat at the transom only drawing a few inches.
This being a good improvement the canoe which rolls like a bugger without too much loss of efficiency.
But in the end I never intend to operate at any speed over hull speed, 1/3 throttle gives me hull speed, wide open gives me 2 more knots. And a tidal wave of wake.
I completely agree with you that an ideal speed is a bit below hull speed, it's so easy to judge it by the wake.
And yes, I also agree with your 3 to 5 HP per ton for a displacement hull.
Where I'm confused is where you indicate more power for a semi displacement hull. Is that for the same speed or a greater speed that is potentially achieveable?
The question would be, is my semi displacement hull any less efficient at say a knot below hull speed than a full displacement. I suspect it is, but only marginally. Can it really need 1.5 the power?

If I use 5 HP per ton, 9.5 X 5 = 47.5 HP.

I know the old Chrysler Crown had well over 100 HP, but in that era, throwing fuel away to achieve another knot or two was irrelevant.
I think it was way more than necessary for hull speed or that magical sweet spot slightly slower.

The power curves for my Perkins gives 50 HP at just over 1000 RPM!
But sadly peak torque at about 1800 RPM.
Poor thing is just carboning up.

Now in the end, all things being equal, I'd happily pop in 90 HP, "just to be safe" but my budget and the available space make that difficult.
Those old flatheads were pretty short.

Perhaps your engine recommendations will help me with those issues.
I'll look intro it.

Thanks again, great discussion.

Peter
__________________

Peter Knowles is offline   Reply With Quote
Reply

Thread Tools Search this Thread
Search this Thread:

Advanced Search
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off





All times are GMT -5. The time now is 03:45 PM.


Powered by vBulletin® Version 3.8.8 Beta 4
Copyright ©2000 - 2018, vBulletin Solutions, Inc.
Search Engine Optimization by vBSEO 3.6.0
Copyright 2006 - 2012
