Wiring IsoProCharge

Hi Everyone

Was hoping for help and clarification on wiring the IsoProCharge unit into my boat.

I am looking for the simplest set up possible.

What I have is this...

2 x Main Engines (Cummins NT855)
1x 12 v 160amp alt. connected to Stb motor (port motor has 24v alt to charge a completely separate inverter bank which is not part of this equation)
1 x Engine start bank of two 8D batts. 12v
1 x House Bank of 800amps 12v.
2 x Gensets with alts both 12v.

What I want to do is this...

1. Wire the Engine start bank to start both the main engines and the gensets. I would do this via two separate battery switches, 1-2-both.
2. Use the House Bank to emergency combine with the Engine Bank via the switches mentioned above.
3. Charge the Engine Bank and House Bank with the IsoProCharge.
4. Run the Genset Alts directly back to the Genset starter to go back to the Engine Start Banks.

I have two separate 12v main electricity chargers to charge the house and engine banks separately.

Can anyone mock up a diagram for this arrangement please...I have put a rough diagram together but am a little confused where to join the Negative cables either to each engine and link together or keep separate.

Thanks for any assistance.

Bo
__________________
Advertisement

Bohans is offline   Reply With Quote
Old 04-29-2015, 12:30 AM   #2
Guru

C lectric's Avatar

City: Somewhere
Country: , Canada
Vessel Name: Island Pride
Vessel Model: Palmer sedan 32'
Join Date: Oct 2007
Posts: 1,864
Ok, I don't know the IsoProCharge unit and googling it brought me right back here.

Do you have a link that offers a description and a mfgr. manual online.

As for the negatives, verbally, the negatives should all go back to ONE buss bar that the batteries are also connected to. One neg from each engine to the buss bar.


But as for specifics the link might help.
__________________

C lectric is online now   Reply With Quote
Old 04-29-2015, 12:34 AM   #3
Veteran Member

City: Mooloolaba
Country: Australia
Vessel Name: Ohana
Vessel Model: DeFever 72
Join Date: Jul 2011
Posts: 80
Thanks for that.

I was going to send all the Negative to their respective spot on the starter motors then bridge both engines together with cable to join the negatives. Just not sure if I need to do this. For the two main engines how else are they "linked" together through their Earth/negative connections.

http://promariner.com/wp-content/upl...L-REV-VIEW.pdf

Manual above.

Thanks

Bo
Bohans is offline   Reply With Quote
Old 04-29-2015, 01:23 AM   #4
Guru

C lectric's Avatar

City: Somewhere
Country: , Canada
Vessel Name: Island Pride
Vessel Model: Palmer sedan 32'
Join Date: Oct 2007
Posts: 1,864
Depends upon the starter motors. Your engine may have an ISOLATED starter meaning the starter actually has it own neg connection. Often a lighter neg. wire is then run from the starter negative to a bolt on the engine block close by to pick up the alternator and any alarms/sensors neg.

Many starters ground through their own case to the engine block. Then the eng. block must have a negative run back to the batteries/buss heavy enough to take the starter current.

In either case it is NOT a good idea to jumper between the engines. Each eng. neg. should go back individually to the batteries/buss.

Although in many cases this would be OK and not cause trouble it can cause trouble with circulating currents. Avoid that trouble. Just be sure the main neg. wire, whether from the starter directly or from the engine block, is in top notch condition and goes back to the buss.

if you do not have a buss for the negatives at the batteries and you have a mess of connections at the batteries then that should be cleaned up using a buss.
C lectric is online now   Reply With Quote
Old 04-29-2015, 01:30 AM   #5
Veteran Member

City: Mooloolaba
Country: Australia
Vessel Name: Ohana
Vessel Model: DeFever 72
Join Date: Jul 2011
Posts: 80
Yes you are spot on in that my starter motors both have their own Negative terminal on them. So this is isolated from the motors ground connection then?

I shall run the cables as they currently are with the negative from engine starters back to the battery negative terminal. Do this on both motors and should be fine.

Thanks

Bo
Bohans is offline   Reply With Quote
Old 04-29-2015, 01:54 AM   #6
Guru

C lectric's Avatar

City: Somewhere
Country: , Canada
Vessel Name: Island Pride
Vessel Model: Palmer sedan 32'
Join Date: Oct 2007
Posts: 1,864
So this is isolated from the motors ground connection then? Yes, the neg. terminal is isolated. If you look closely there may be another short jumper to the engine block to pick up the other functions. The engine block ground could be elsewhere also.



I shall run the cables as they currently are with the negative from engine starters back to the battery negative terminal. Do this on both motors and should be fine. Yes
C lectric is online now   Reply With Quote
Old 04-29-2015, 08:43 PM   #7
Veteran Member

City: Mooloolaba
Country: Australia
Vessel Name: Ohana
Vessel Model: DeFever 72
Join Date: Jul 2011
Posts: 80
Just another quick question...

Given a choice, would you attach the mains chargers to the battery switch terminal or directly to the battery bank positive. Which is going to give most efficient charging or does it not matter.

Also, I found that my Engine starter negative terminal goes to the negative terminal on the alternator. this then goes via a cable to the generator engine case...

Thanks

Bo
Bohans is offline   Reply With Quote
Old 04-29-2015, 08:50 PM   #8
Guru

Moonstruck's Avatar

City: Hailing Port: Charleston, SC
Country: USA
Vessel Name: Moonstruck
Vessel Model: Sabre 42 Hardtop Express
Join Date: Nov 2008
Posts: 7,848
Fryedaze (Dave) has installed the Promariner dc charging system on his boat. I suggest you send him a private message.
__________________
Don on Moonstruck
Sabre 42 Hardtop Express & Blackfin 25 CC
When cruising life is simpler, but on a grander scale (author unknown)
http://moonstruckblog.wordpress.com/
Moonstruck is offline   Reply With Quote
Old 04-30-2015, 12:25 AM   #9
Senior Member

Jay N's Avatar

City: Edmonds, WA
Country: USA
Vessel Name: WESTERLY
Vessel Model: 1974 Pacific Trawler 37
Join Date: Oct 2007
Posts: 387
Check out the following link:

Installing A Marine Battery Charger Photo Gallery by Compass Marine How To at pbase.com
Jay N is offline   Reply With Quote
Old 04-30-2015, 11:40 AM   #10
Guru

Alaskan Sea-Duction's Avatar

City: Inside Passage Summer/Columbia River Winter
Country: USA
Vessel Name: Alaskan Sea-Duction
Vessel Model: 1988 M/Y Camargue YachtFisher
Join Date: Jul 2012
Posts: 3,139

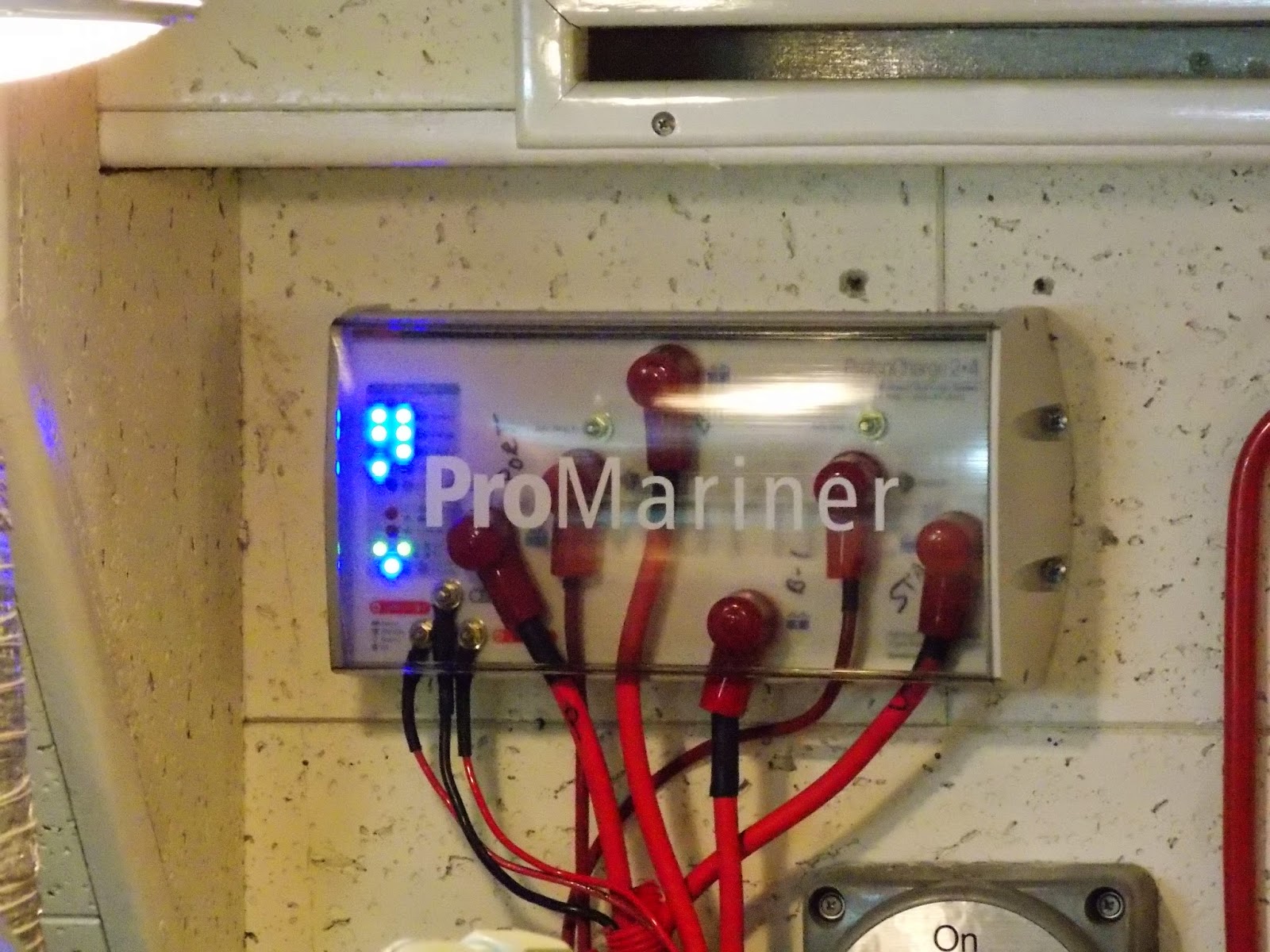

Call the techs at ProMariner. They may ask for a drawing from you to get an idea of your needs.

They set me up with this. 2 engine inputs and 4 outputs. It wasn't hard to install, but I spent more on wire than I did for the unit.

__________________
1988 M/Y Camargue Yacht Fisher
Alaskan Sea-Duction
MMSI: 338131469
Blog: http://alaskanseaduction.blogspot.com/
Alaskan Sea-Duction is online now   Reply With Quote
Old 04-30-2015, 11:46 AM   #11
Guru

Moonstruck's Avatar

City: Hailing Port: Charleston, SC
Country: USA
Vessel Name: Moonstruck
Vessel Model: Sabre 42 Hardtop Express
Join Date: Nov 2008
Posts: 7,848
Quote:
Originally Posted by Alaskan Sea-Duction View Post
Call the techs at ProMariner. They may ask for a drawing from you to get an idea of your needs.

They set me up with this. 2 engine inputs and 4 outputs. It wasn't hard to install, but I spent more on wire than I did for the unit.


How's the installation working for you?
__________________
Don on Moonstruck
Sabre 42 Hardtop Express & Blackfin 25 CC
When cruising life is simpler, but on a grander scale (author unknown)
http://moonstruckblog.wordpress.com/
Moonstruck is offline   Reply With Quote
Old 04-30-2015, 11:58 AM   #12
Guru

Alaskan Sea-Duction's Avatar

City: Inside Passage Summer/Columbia River Winter
Country: USA
Vessel Name: Alaskan Sea-Duction
Vessel Model: 1988 M/Y Camargue YachtFisher
Join Date: Jul 2012
Posts: 3,139
Quote:
Originally Posted by Moonstruck View Post
How's the installation working for you?
Great! The unit senses and if needed sets the start batteries as a priority. Then switches over to the house batteries. The unit is all electronic with no diodes so you don't have the issues you had with the older battery isolators.
My install makes it easy to see on the back bulkhead of the ER. No compliants...
__________________
1988 M/Y Camargue Yacht Fisher
Alaskan Sea-Duction
MMSI: 338131469
Blog: http://alaskanseaduction.blogspot.com/
Alaskan Sea-Duction is online now   Reply With Quote
Old 04-30-2015, 12:44 PM   #13
Guru

C lectric's Avatar

City: Somewhere
Country: , Canada
Vessel Name: Island Pride
Vessel Model: Palmer sedan 32'
Join Date: Oct 2007
Posts: 1,864
Also, I found that my Engine starter negative terminal goes to the negative terminal on the alternator. this then goes via a cable to the generator engine case...
-----------------------------------------------------------------------

Hmm, without actually seeing all the system and arrangement this sound not quite right.
It obviously works or worked or you would not now be able to start.

I could see using the neg main engine starter lug as the ground from the alternator which actually is approx the same as I suggested before about an engine block neg. bolted on near to the starter to pickup the engine block , sensers, alternator. They have simply chosen the alternator as the engine block neg. point and picked up the alternator also.

The run to the gen. may have been done that way to save wire [not duplicate] especially if the gen is between the engines and the batts. picking up the gen in the process.
Strictly speaking there is probably nothing wrong but personally it does not sound like the best but as long as the connections are maintained, the wire is in good condition and it works then carry on.

This may be one of those situations where a pair of experienced eyes need to have a look.
C lectric is online now   Reply With Quote
Old 05-01-2015, 06:57 AM   #14
Veteran Member

City: Mooloolaba
Country: Australia
Vessel Name: Ohana
Vessel Model: DeFever 72
Join Date: Jul 2011
Posts: 80
Thanks for the replies. I appreciate them.

I have started pulling and labeling all current wires to all associated motors -4 in total...

My aim is to create a larger house bank and separate start bank. I current have separate house, mains start, two genset starts...4 banks and 5 battery switches. Too much...

by the time I finish I shall have an on off for the house switch a large house bank and separate start bank for all engines with an ability to combine in with the house if required in emergency. There will be three battery switches only.

both banks are charged from one alternator on the main and when either genset is running its alt will charge the engine bank also. The Iso Charge unit splits to both house and engine start banks.

I am reconnecting all negative wires and redoing all the terminals.

shall see how it goes.

thanks

Bo
Bohans is offline   Reply With Quote
Old 05-01-2015, 12:27 PM   #15
Guru

Alaskan Sea-Duction's Avatar

City: Inside Passage Summer/Columbia River Winter
Country: USA
Vessel Name: Alaskan Sea-Duction
Vessel Model: 1988 M/Y Camargue YachtFisher
Join Date: Jul 2012
Posts: 3,139
Bo,

make sure to keep us up on your progress and post pics.....
__________________
1988 M/Y Camargue Yacht Fisher
Alaskan Sea-Duction
MMSI: 338131469
Blog: http://alaskanseaduction.blogspot.com/
Alaskan Sea-Duction is online now   Reply With Quote
Old 05-02-2015, 04:57 AM   #16
Veteran Member

City: Mooloolaba
Country: Australia
Vessel Name: Ohana
Vessel Model: DeFever 72
Join Date: Jul 2011
Posts: 80
After about 8 hours of pulling cables and marking them, then redesigning the system without the isoprocharge it has all come to an end...the two big main engines did not like the idea of longer cable runs especially the port motor. I should have known...anyway, I have now put it back to the way it was. My boat has split engine rooms and the cable runs are too long with a start bank on one side. Now my start bank is in the middle exactly between both motors. All fine now. But back to all those switches.

I have put the isocharge in and am waiting to install the alternator wire as I have to extend that cable with a terminal join.

shall put photo up when done.

Bo
Bohans is offline   Reply With Quote
Old 05-06-2015, 10:33 PM   #17
Veteran Member

City: Mooloolaba
Country: Australia
Vessel Name: Ohana
Vessel Model: DeFever 72
Join Date: Jul 2011
Posts: 80
Finished wiring and testing my new Pro ISO Charge unit.

I refreshed all wiring and connections, made sense of how it all works.

Here are some photos.
Attached Thumbnails
Click image for larger version

Name:	Iso Pro 2.jpg
Views:	62
Size:	97.8 KB
ID:	39972   Click image for larger version

Name:	Iso Pro 1.jpg
Views:	60
Size:	103.7 KB
ID:	39973
Bohans is offline   Reply With Quote
Old 05-12-2015, 05:41 PM   #18
Guru

Alaskan Sea-Duction's Avatar

City: Inside Passage Summer/Columbia River Winter
Country: USA
Vessel Name: Alaskan Sea-Duction
Vessel Model: 1988 M/Y Camargue YachtFisher
Join Date: Jul 2012
Posts: 3,139
Very nice job
__________________
1988 M/Y Camargue Yacht Fisher
Alaskan Sea-Duction
MMSI: 338131469
Blog: http://alaskanseaduction.blogspot.com/
Alaskan Sea-Duction is online now   Reply With Quote
Old 05-12-2015, 07:54 PM   #19
Veteran Member

City: Mooloolaba
Country: Australia
Vessel Name: Ohana
Vessel Model: DeFever 72
Join Date: Jul 2011
Posts: 80
THanks for the comment. I appreciate it.

Next job is to install two Engine Room cameras.

I have bought two foscam HD cameras and they wirelessly send images to my laptop or phone. I am putting them in today all going well.

Shall post a pic when done.

The engine rooms currently have a wired Raymarine camera in each room, but this is such poor quality compared to the new Foscams...Raymarine are also about 6 times the price. They must have lost a lot of market share to these non-marine companies.
Bohans is offline   Reply With Quote
Old 05-13-2015, 03:29 PM   #20
Guru

Alaskan Sea-Duction's Avatar

City: Inside Passage Summer/Columbia River Winter
Country: USA
Vessel Name: Alaskan Sea-Duction
Vessel Model: 1988 M/Y Camargue YachtFisher
Join Date: Jul 2012
Posts: 3,139
Where did you get them? Do you need to run your ER lights for the camera?
__________________

__________________
1988 M/Y Camargue Yacht Fisher
Alaskan Sea-Duction
MMSI: 338131469
Blog: http://alaskanseaduction.blogspot.com/
Alaskan Sea-Duction is online now   Reply With Quote
