Silencing Audible Alarms? - a survey

Do you have general vessel alarms (for bilges, tank levels, etc) with provision for silencing an active alarm without affecting the others or subsequent instances? And, would a simple, low cost electronic module to do this seem useful, 'IYO'? Not considering here sophisticated monitoring systems but the simple basics - What do you have, on what sort of boat (if it isn't your avatar)? Thanks!
__________________
Advertisement

EngNate is offline   Reply With Quote
Old 12-08-2019, 04:56 PM   #2
Guru

Simi 60's Avatar

City: Queensland
Country: Australia
Vessel Model: Milkraft 60 converted timber trawler
Join Date: Jul 2016
Posts: 2,330
Bilge alarm
Engine temp alarm
Genset temp alarm
Battery alarm.

All individual alarms independent of each other.
All silenced at the push of a button.
__________________

Simi 60 is online now   Reply With Quote
Old 12-08-2019, 04:57 PM   #3
Member

City: Jacksonville, FL
Country: USA
Join Date: Nov 2016
Posts: 24
https://www.aqualarm.net
hytedin is offline   Reply With Quote
Old 12-09-2019, 10:45 AM   #4
Guru

caltexflanc's Avatar

City: North Carolina for now
Country: USA
Vessel Name: Small Incentive
Vessel Model: Boston Whaler 130 Sport
Join Date: Aug 2011
Posts: 5,365

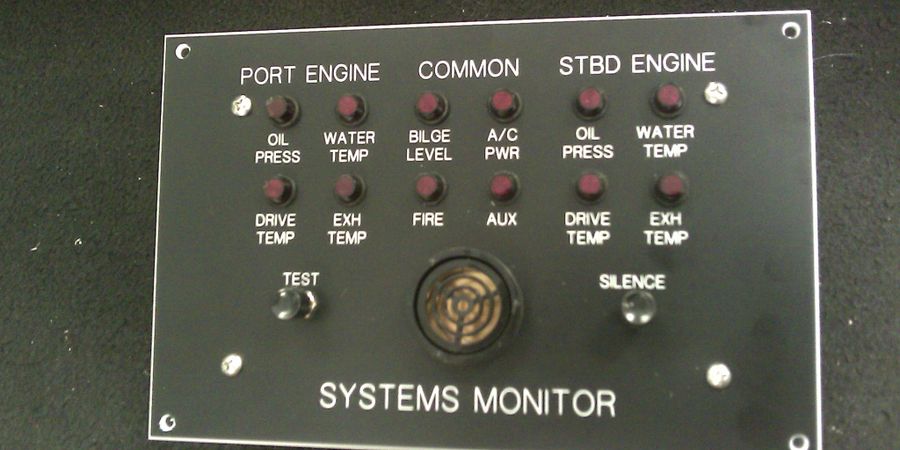

This is what we had on our old Hatteras

__________________
George

"There's the Right Way, the Wrong Way, and what some guy says he's gotten away with"
caltexflanc is offline   Reply With Quote
Old 12-09-2019, 10:54 AM   #5
Guru

City: Fairport, NY and Palm Coast, FL
Country: United States
Join Date: Jan 2017
Posts: 1,797
Quote:
Originally Posted by caltexflanc View Post
This is what we had on our old Hatteras

I like that. Even with the networking, glass bridges and digital gauges on yachts now; the basic, "look and hear me now" methods of fault location many times still relies on timely eye scan.

The company I work for makes the light boxes and drive electronics like these:
diver dave is offline   Reply With Quote
Old 12-09-2019, 10:57 AM   #6
Guru

DavidM's Avatar

City: Litchfield, Ct/Punta Gorda, Fl
Country: USA
Vessel Model: Atlas Pompano 23
Join Date: Aug 2012
Posts: 5,052
I think there is a place for such a unit or system and perhaps you are considering marketing one. Each alarm and the silencing of it needs to be independent of the others. An Aqualarm or similar could be ignored for a short while, but an engine coolant alarm that might follow shouldn't be ignored.


David
DavidM is offline   Reply With Quote
Old 12-09-2019, 11:16 AM   #7
Veteran Member

EngNate's Avatar

City: Vancouver Isl
Country: Canada
Vessel Name: Tenacious
Vessel Model: Uniflite 31 FB Sedan
Join Date: Feb 2019
Posts: 79
I think those Hatteras panels, and the associated relay boards, were also used on Bertrams. Those do silence and reset independently. The Aqualarm models I know of have a common silencing for all inputs.
EngNate is offline   Reply With Quote
Old 12-09-2019, 11:23 AM   #8
Guru

City: Fairport, NY and Palm Coast, FL
Country: United States
Join Date: Jan 2017
Posts: 1,797
Again the nuke example, having been figured out by human factors folk long ago.

An alarm comes in, the associated light box flashes, the audible signal starts.
The operator eventually acknowledges the alarm, and the light goes from flash to constant ON. At the point where folks are actively debugging the system, the silence button gets hit. Constant noise generation is counterproductive, once the alarm is being acted upon. Only at the point where the defect is below alarm level, does the lamp go out.
fyi, in the nuke example, each alarm and ack is timestamped to the nearest millisecond and stored for later review.
diver dave is offline   Reply With Quote
Old 12-09-2019, 11:33 AM   #9
TF Site Team

Larry M's Avatar

City: JAX, FL
Country: USA
Vessel Name: Hobo
Vessel Model: Krogen 42-120
Join Date: Nov 2008
Posts: 8,212
Maybe an alarm switch that was timed or one that reset when the engine was restarted or shut off.

True story. We had a neighbor that had added a switch to his alarms. An overheat alarm went off one day while he was out. He hit the switch and shut the engine down. He found he had lost an impeller which he replaced. He forgot the alarm was off and took off again. The engine overheated to the point he cracked the block. He had sucked a plastic bag that had caused the impeller to fail in the first place.
Larry M is offline   Reply With Quote
Old 12-11-2019, 01:24 AM   #10
Veteran Member

EngNate's Avatar

City: Vancouver Isl
Country: Canada
Vessel Name: Tenacious
Vessel Model: Uniflite 31 FB Sedan
Join Date: Feb 2019
Posts: 79
Yes, the thing I'm referring to is, silence resets when fault is cleared, same if power is cycled. Engine alarms would be powered from the keyswitch.
