Ford Lehman 120 Tach Died

Hi,
I have a new to me trawler with Single Ford Lehman 120. Tachs worked ok at first. They looked like they were "sticking" for a little bit then died on a cruise. A couple times it looked like they were coming back to live, but they are dead.

Need help to start debugging the problem. Not even sure where signal comes from off engine. I have pics of alternator and awoke senders attached.

Click image for larger version

Name:	ImageUploadedByTrawler Forum1466128330.318585.jpg
Views:	137
Size:	23.7 KB
ID:	53174Click image for larger version

Name:	ImageUploadedByTrawler Forum1466128344.972096.jpg
Views:	125
Size:	22.3 KB
ID:	53175Click image for larger version

Name:	ImageUploadedByTrawler Forum1466128359.798478.jpg
Views:	126
Size:	19.3 KB
ID:	53176Click image for larger version

Name:	ImageUploadedByTrawler Forum1466128374.599602.jpg
Views:	132
Size:	23.9 KB
ID:	53177Click image for larger version

Name:	ImageUploadedByTrawler Forum1466128386.649541.jpg
Views:	136
Size:	19.8 KB
ID:	53178Click image for larger version

Name:	ImageUploadedByTrawler Forum1466128414.576698.jpg
Views:	137
Size:	24.9 KB
ID:	53179Click image for larger version

Name:	ImageUploadedByTrawler Forum1466128429.898216.jpg
Views:	131
Size:	16.3 KB
ID:	53180


Sent from my iPad using Trawler Forum

Raymond Goff
1978 Marine Trader 34

Www.libertytrawler.com
__________________
Advertisement

__________________
Ray & Barb Goff
1978 Marine Trader 34
Cincinnati, OH
http://www.libertytrawler.com/
raymond.goff is offline   Reply With Quote
Old 06-16-2016, 11:06 PM   #2
Senior Member

Islanddreamer's Avatar

City: Kingsville, MD
Country: USA
Vessel Name: Slow Ride
Vessel Model: Albin 36 D/C Hull 46 Dec 1978
Join Date: Mar 2016
Posts: 153
This is a link to the Lehman manual if you don't already have one. This page detail where you may want to begin looking.

Page 23

And here is a link to the complete service manual:

http://www.jachtenonderlinge.nl/uplo...hop_manual.pdf

It isn't a searchable pdf, but at least you can begin to find your way around your diesel. Takes a while to download.

mike
__________________

__________________
Any day aboard is a good day.
Islanddreamer is offline   Reply With Quote
Old 06-16-2016, 11:09 PM   #3
Senior Member

Islanddreamer's Avatar

City: Kingsville, MD
Country: USA
Vessel Name: Slow Ride
Vessel Model: Albin 36 D/C Hull 46 Dec 1978
Join Date: Mar 2016
Posts: 153
Also look here:

Ford Lehman 120 guage set up
__________________
Any day aboard is a good day.
Islanddreamer is offline   Reply With Quote
Old 06-17-2016, 07:11 AM   #4
Guru

jleonard's Avatar

Join Date: Jun 2008
Posts: 2,439
This might help
Attached Files
File Type: pdf FordLehmanEngineElectricSchematic.pdf (49.9 KB, 54 views)
__________________
Jay Leonard
Attitude Adjustment
40 Albin
Mystic,Ct
jleonard is offline   Reply With Quote
Old 06-17-2016, 07:21 AM   #5
Guru

psneeld's Avatar

City: Avalon, NJ
Country: USA
Vessel Name: Freedom
Vessel Model: Albin 40
Join Date: Oct 2011
Posts: 13,266
Looks like an alternator regulator in the last 2 pics.... cant be sure but some regulators have the tach takeoff from there.


If not there is an ice cream cone looking tach sender on the starboard dside of the engine, low, about 2/3 of the way back on the engine.
psneeld is offline   Reply With Quote
Old 06-17-2016, 07:33 AM   #6
Enigma

RT Firefly's Avatar

City: Slicker?
Country: Bumpkin?
Join Date: Oct 2007
Posts: 8,345
Greetings,
Mr. RG. Possibly NOT a solution but at some point I can see your electrical connections benefiting from a good clean up. One at a time, carefully remove each connection, and remove corrosion. Replace each with a coat of your favorite corrosion stopper. Do this with the battery disconnected.

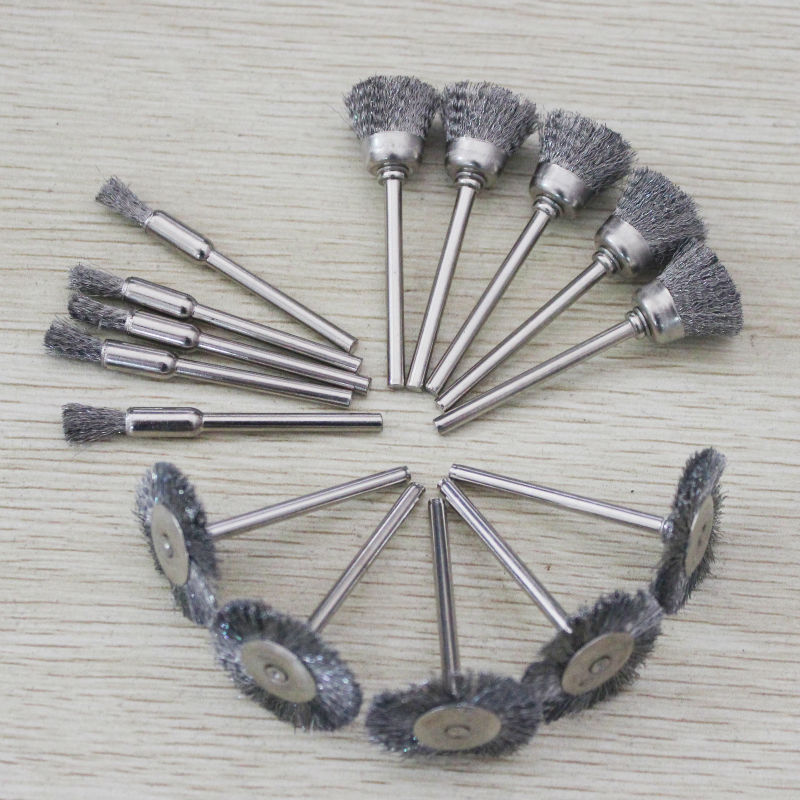

I've found a Dremel with a small wire wheel attachment to be useful.

__________________
RTF
RT Firefly is online now   Reply With Quote
Old 06-17-2016, 08:54 AM   #7
Guru

READY2GO's Avatar

City: Marathon, Florida
Country: USA
Vessel Name: Walkabout
Vessel Model: 1978 Marine Trader 36
Join Date: Jan 2012
Posts: 503
I installed one of these and am very happy with it. Cost about $100 and is much more accurate.

https://tinytach.com/diesel.php
__________________
"Whenever you find yourself on the side of the majority, it is time to pause and reflect." Mark Twain

www.mikeandsharondunsworth.blogspot.com
READY2GO is offline   Reply With Quote
Old 06-17-2016, 09:53 AM   #8
Guru

Capt.Bill11's Avatar

City: Sarasota/Ft. Lauderdale
Country: USA
Join Date: Apr 2014
Posts: 4,997
Quote:
Originally Posted by RT Firefly View Post
Greetings,
Mr. RG. Possibly NOT a solution but at some point I can see your electrical connections benefiting from a good clean up. One at a time, carefully remove each connection, and remove corrosion. Replace each with a coat of your favorite corrosion stopper. Do this with the battery disconnected.

I've found a Dremel with a small wire wheel attachment to be useful.

What he said.
Capt.Bill11 is offline   Reply With Quote
Old 06-17-2016, 10:02 AM   #9
Guru

psneeld's Avatar

City: Avalon, NJ
Country: USA
Vessel Name: Freedom
Vessel Model: Albin 40
Join Date: Oct 2011
Posts: 13,266
Quote:
Originally Posted by READY2GO View Post
I installed one of these and am very happy with it. Cost about $100 and is much more accurate.

https://tinytach.com/diesel.php
Did you install one at both upper and lower helms?
psneeld is offline   Reply With Quote
Old 06-17-2016, 11:29 AM   #10
Senior Member

Sealife's Avatar

City: In transit
Country: From USA
Vessel Name: Sea life
Vessel Model: Krogen 42 #61
Join Date: Nov 2013
Posts: 204
The tinytach website didn't provide much info. It installs in the fuel line?? I have been looking to upgrade mine. Can't seem to get exact info for tach tach off parts on stbd rear. I only have a plug there. Do you have a pdf of install directions?
__________________
Scott

www.caribbeansealife.com
Sealife is offline   Reply With Quote
Old 06-18-2016, 09:02 AM   #11
Senior Member

City: Warwick, RI
Country: USA
Vessel Name: Susan Helena
Vessel Model: Albin40
Join Date: Oct 2014
Posts: 125
The white lead coming from the R terminal goes to the tach on mine. It is a pulsed signal that varies with speed. You should get about 6 volts out, which you can check at the lead into the tach at your helm. Judging from your engine wiring, you may be dealing with a bad ground in your helm station.
mike66 is offline   Reply With Quote
Old 07-04-2016, 08:20 PM   #12
Veteran Member

raymond.goff's Avatar

City: Cincinnati
Country: USA
Vessel Name: Liberty
Vessel Model: Marine Trader
Join Date: Nov 2015
Posts: 65
All:
Sorry for delay in replying. I am trying to figure out how my tach was wired. Many mentioned a starboard side sender, but I don't see anything. Is there where is WOULD be if I had one? Based on other pics on the web, I think it is....

If that is where is would be if I had starboard sender, I guess I don't have one. In that case, would it be coming off the alternator some how?

Ray
Attached Thumbnails
Click image for larger version

Name:	StarboardSide.jpg
Views:	59
Size:	98.9 KB
ID:	53850
__________________
Ray & Barb Goff
1978 Marine Trader 34
Cincinnati, OH
http://www.libertytrawler.com/
raymond.goff is offline   Reply With Quote
Old 07-04-2016, 10:01 PM   #13
Guru

Capt.Bill11's Avatar

City: Sarasota/Ft. Lauderdale
Country: USA
Join Date: Apr 2014
Posts: 4,997
If you don't have the sender than the tach is most likely driven off the alternator.
Capt.Bill11 is offline   Reply With Quote
Old 07-05-2016, 07:23 AM   #14
Senior Member

City: Warwick, RI
Country: USA
Vessel Name: Susan Helena
Vessel Model: Albin40
Join Date: Oct 2014
Posts: 125
In your photo of the back of the tachometer the white/blue pair of wires are outputs. On my boat the white R goes to the tachometer. Try measuring for voltage between the wire going into your tach and a ground wire in your instrument cluster with the engine running. You should see some voltage (? 6 volts ac). If you don't it looks like a wiring problem. You can also measure the voltage out of the R terminal on the alternator with the engine running. Some voltage regulators have a delay in alternator output when the engine is first started, so wait a few minutes to get a reading if it's 0v ac. That blue wire from the P probably goes to the external voltage regulator.
mike66 is offline   Reply With Quote
Old 07-05-2016, 07:24 PM   #15
Veteran Member

raymond.goff's Avatar

City: Cincinnati
Country: USA
Vessel Name: Liberty
Vessel Model: Marine Trader
Join Date: Nov 2015
Posts: 65
It looks like I am getting about 1v at idle and around 2+ with some throttle. The alternator had a bad shimmy due to a bad spacer. Could the alternator be having issues?
__________________
Ray & Barb Goff
1978 Marine Trader 34
Cincinnati, OH
http://www.libertytrawler.com/
raymond.goff is offline   Reply With Quote
Old 07-06-2016, 06:36 AM   #16
Senior Member

City: Warwick, RI
Country: USA
Vessel Name: Susan Helena
Vessel Model: Albin40
Join Date: Oct 2014
Posts: 125
Is that at the tach or the alternator? That terminal on the alternator is a tap to the common point between the stator coils before it is rectified into dc voltage. It should read approximately 1/2 the output voltage. How much voltage is the alternator putting out? Check between the B terminal with the heavy red wire and ground. Also, run just that engine while testing; all other charging sources should be off.
Yes, the alternator could be bad, or the wiring.
mike66 is offline   Reply With Quote
Old 07-06-2016, 09:22 AM   #17
Veteran Member

raymond.goff's Avatar

City: Cincinnati
Country: USA
Vessel Name: Liberty
Vessel Model: Marine Trader
Join Date: Nov 2015
Posts: 65
I talked to American Diesel. They suggested i jump the oil pressure switch and see if the switch is bad. I will be doing this later today to see if the switch is causing charging and tach issues.

RG
__________________
Ray & Barb Goff
1978 Marine Trader 34
Cincinnati, OH
http://www.libertytrawler.com/
raymond.goff is offline   Reply With Quote
Old 07-07-2016, 10:03 AM   #18
Veteran Member

raymond.goff's Avatar

City: Cincinnati
Country: USA
Vessel Name: Liberty
Vessel Model: Marine Trader
Join Date: Nov 2015
Posts: 65
Quote:
Originally Posted by raymond.goff View Post
I talked to American Diesel. They suggested i jump the oil pressure switch and see if the switch is bad. I will be doing this later today to see if the switch is causing charging and tach issues.

RG
Update:
I did the test suggested by American Diesel, no luck. Pulled the alternator and brought to a local shop. Bench test showed it was pretty much dead. They actually had a re manufactured in stock and ten min later they swapped pulley and I was out the door.

I will put it in tonight and see if all is good.

RG
__________________
Ray & Barb Goff
1978 Marine Trader 34
Cincinnati, OH
http://www.libertytrawler.com/
raymond.goff is offline   Reply With Quote
Old 07-07-2016, 04:54 PM   #19
Veteran Member

raymond.goff's Avatar

City: Cincinnati
Country: USA
Vessel Name: Liberty
Vessel Model: Marine Trader
Join Date: Nov 2015
Posts: 65
Well, the alternator seemed to fix the issue. Currently out on a test run. Everything looks to be normal.
__________________
Ray & Barb Goff
1978 Marine Trader 34
Cincinnati, OH
http://www.libertytrawler.com/
raymond.goff is offline   Reply With Quote
Old 07-07-2016, 05:14 PM   #20
Senior Member

City: Warwick, RI
Country: USA
Vessel Name: Susan Helena
Vessel Model: Albin40
Join Date: Oct 2014
Posts: 125
Awesome! Good idea to double check the pully alignment so you don't get vibration or belt wear. Now you know all about your alternator. 999 systems to go!
