rudder question

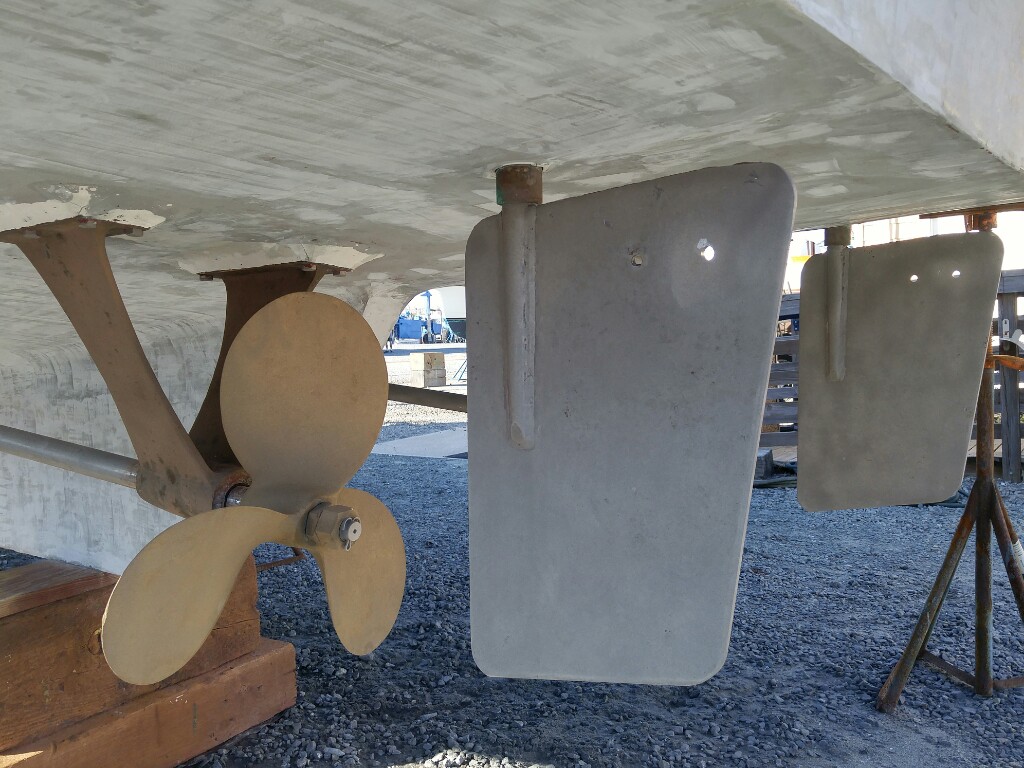

I've got a couple rudder questions. I think the rudders on my Marine Trader may be stainless steel, since they show no sign of rusting since the boat was soda blasted a few weeks back. My questions are:
  1. Should I coat the rudders and struts with the same bottom paint that goes on the hull?
  2. I see there are two holes in each rudder. Should I install two sets of zincs? If not, what do you suppose the purpose is for that second hole?
__________________
Advertisement

seattleboatguy is offline   Reply With Quote
Old 10-15-2017, 04:21 PM   #2
Moderator Emeritus

dwhatty's Avatar

City: Home Port: Buck's Harbor, Maine
Country: USA
Vessel Name: "Emily Anne"
Vessel Model: 2001 Island Gypsy 32 Europa (Hull #146)
Join Date: Sep 2008
Posts: 2,806
As to question 1, if they are SS rudders, or perhaps even if they are not but any metal, I would consider using a product such as this first, followed by your usual anti fouling paint: Pettit Underwater Priming Kit.

I used it on our SS prop cage with good results. First year we had the cages I did not use this product and the anti fouling did not adhere. Now it does.

As to question 2, can't opine on why two holes but I'd just put single hole clamshell zincs on them.
__________________

__________________
David Hawkins
Deer Isle, Maine
dwhatty is offline   Reply With Quote
Old 10-15-2017, 04:29 PM   #3
Guru

Join Date: Oct 2007
Posts: 802
Use a magnet to determine stainless or not - magnet will not be attracted to stainless of acceptable quality. Perhaps 2 holes indicated a zinc with 2 bolts, like a trim tab zinc, or 2 separate zincs were attached.
Chrisjs is offline   Reply With Quote
Old 10-15-2017, 06:43 PM   #4
Guru

kchace's Avatar

City: Brookline, NH
Country: USA
Vessel Name: Blue Heaven
Vessel Model: Albin 43 classic double cabin, twin 135 Lehmans
Join Date: Sep 2013
Posts: 1,439
Mine are stainless. I coat them the same as the bottom. Only one zinc per rudder. I'm guessing yours either had 2 zincs or one larger zinc that required 2 fasteners.

Ken
kchace is offline   Reply With Quote
Old 10-15-2017, 07:00 PM   #5
Guru

City: ??
Country: ??
Vessel Name: ??
Vessel Model: ??
Join Date: Oct 2007
Posts: 2,371
#1 Bottom paint the rudders using the appropriate primer. As suggested a magnet will tell you if ss.

#2 as suggested either used two small zincs or one larger one that needed two holes
Or as I do use a flat plate piece of zinc and drill two matching holes.
C lectric is offline   Reply With Quote
Old 10-15-2017, 08:11 PM   #6
Obx
Senior Member

City: Outer banks NC
Country: USA
Join Date: Nov 2015
Posts: 102
Quote:
Originally Posted by Chrisjs View Post
Use a magnet to determine stainless or not - magnet will not be attracted to stainless of acceptable quality. Perhaps 2 holes indicated a zinc with 2 bolts, like a trim tab zinc, or 2 separate zincs were attached.
But remember 300 grade stainless will still pull a magnet to it, it wont stick but you can feel the pull, so regardless if it's Stainless or not coat it.

Those 2 holes are for anodes, switching to a 1 bolt anode may not be enough anode for the intended attraction. If there are 1 bolt anodes with enough thickness and area as 2 bolted it doesn't matter if it's 1 or 2 bolted.
Obx is offline   Reply With Quote
Old 10-15-2017, 11:28 PM   #7
Senior Member

wwestman's Avatar

City: Bellingham, WA
Country: USA
Vessel Name: Excellent Adventure
Vessel Model: 1995 Jefferson Ker Shine 45
Join Date: Apr 2015
Posts: 301
On sailboats the hole is used to run a rope though with a knot on both sides and led back up on deck. This is done when you lose your steering system and allows you to steer by pulling on the appropriate end of the rope.

Never heard of it being done on a power boat.

If there is only one hole, usually that is where a zinc is attached.
wwestman is offline   Reply With Quote
Old 10-15-2017, 11:50 PM   #8
Guru

City: Between Oregon and Alaska
Country: US
Vessel Name: Charlie Harper
Vessel Model: Wheeler Shipyard 83'
Join Date: Jun 2016
Posts: 1,396
The rudders may be gun metal. It's grey in color and a type of red bronze. About 88% copper, 8-10% tin and 2% zinc. Sometimes the zinc is replaced with lead.
It was originally used to make cannons, but now is used for valves, pump parts and steam fittings.
If the rudders look cast rather than welded, they probably are gunmetal.
Lepke is offline   Reply With Quote
Old 10-15-2017, 11:54 PM   #9
Guru

High Wire's Avatar

City: Cape May, NJ and Englewood, FL
Country: USA
Vessel Name: Irish Lady
Join Date: Dec 2007
Posts: 2,640
A file will tell if SS or bronze.
Yes bottom paint.
What zincs were on there when boat pulled? Do you have any pictures from before? They might show.
__________________
Archie
1984 Monk 36 Hull #46
Currently in Cape May, NJ
High Wire is offline   Reply With Quote
Old 10-17-2017, 09:33 PM   #10
Senior Member

chriscritchett's Avatar

Join Date: Jan 2012
Posts: 133
You can see they're welded so almost certainly SS. Either way, clean them up, prime them with something good like an epoxy, and antifoul them. Just like the props, struts, and shafts (& everything else metal under there). The antifoul question is one for the ages; don't use anything soft is all I'm sure of. Propspeed is horribly expensive but I've heard good things. I'm thinking of trying propFX next time on mine, as it's only mildly expensive compared to normal antifouling.

I'm going with the teardrop zinc theory about the holes. You're probably fine just using one rudder zinc in either hole, though, if you can't find an elongated one.
__________________

chriscritchett is offline   Reply With Quote
