radar radiation danger

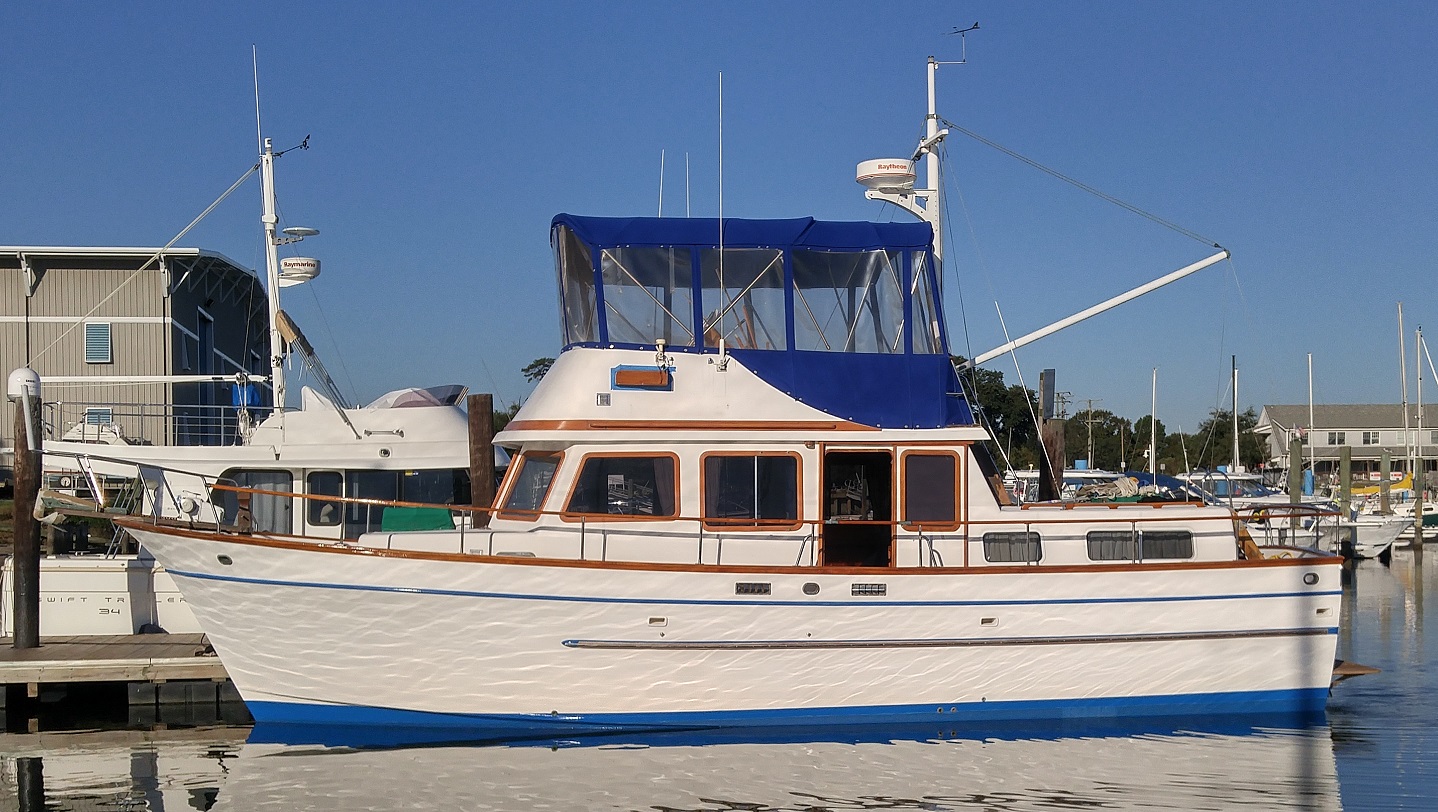

One of the things I did since the picture below was taken was to replace the old Raytheon radar dome with a new Garmin unit. According to the manual, the Garmin dome looks "down" 12.5 degrees, which puts the lower portion of the radiation beam uncomfortably close to anyone steering at the helm on the flying bridge. I could always steer down below when using the radar, but the visibility is better on the flying bridge with a whole lot less engine noise. My questions are:
  • If I purchased a radiation dosimeter at Walmart, would that tell me if a helmsman on my fly bridge is getting dangerously high radiation from the radar?
  • Do you think some thin aluminum on the bimini would significantly reduce the radiation levels?
__________________
Advertisement

seattleboatguy is offline   Reply With Quote
Old 12-11-2017, 07:52 PM   #2
Guru

Lou_tribal's Avatar

City: Quebec
Country: Canada
Vessel Name: Bleuvet
Vessel Model: Custom Built
Join Date: Jan 2016
Posts: 2,329
Depending on the wavelength you may try this:



or this



L
__________________

Lou_tribal is offline   Reply With Quote
Old 12-11-2017, 08:01 PM   #3
Guru

twistedtree's Avatar

City: Gloucester, MA
Country: USA
Join Date: Jan 2013
Posts: 3,580
The radar manual will tell you what the safe distance is from the dome. It's based on the same standard that cell phones follow to minimize brain cooking while talking on the phone.

I think you will find the safe distance is something like 1 meter. So unless you will be hugging your radar dome, it's just not an issue.
__________________
www.MVTanglewood.com
twistedtree is online now   Reply With Quote
Old 12-11-2017, 08:05 PM   #4
Guru

O C Diver's Avatar

City: Fort Myers, FL... Summers in Crisfield, MD
Country: USA
Vessel Name: Slow Hand
Vessel Model: Cherubini Independence 45
Join Date: Dec 2010
Posts: 5,326
There should be a spec for how far away from the antenna is safe for people to be. I would start with that.

I need to type faster

Ted
__________________
Blog: mvslowhand.com
I'm tired of fast moves, I've got a slow groove, on my mind.....
I want to spend some time, Not come and go in a heated rush.....
"Slow Hand" by The Pointer Sisters
O C Diver is offline   Reply With Quote
Old 12-11-2017, 08:35 PM   #5
Guru

Fletcher500's Avatar

City: So-Cal
Country: USA
Vessel Name: Chelsea Rose
Vessel Model: Helmsman 43 PH
Join Date: May 2016
Posts: 617
Are you sure it's not a solid state radar? Only reason I am asking is you said it's new and many of the new units are solid state. If it is, it puts out about the same radiation as a cell phone.
Fletcher500 is offline   Reply With Quote
Old 12-11-2017, 09:12 PM   #6
Guru

Benthic2's Avatar

City: Boston Area
Country: United States
Join Date: Feb 2017
Posts: 960
you should never leave anything as important as your family's health to an internet forum....

but..

The Canadian Coast Guard has a brochure their marine radar that says the safe distance is .2 meters.

http://www.bcmea.com/CMS_Content/HS_..._June_2013.pdf

and....

a beam that is 12 degrees does not reach your helm.
Attached Thumbnails
Click image for larger version

Name:	Pic1.jpg
Views:	132
Size:	83.8 KB
ID:	71162
Benthic2 is online now   Reply With Quote
Old 12-11-2017, 09:34 PM   #7
Senior Member

City: Boston
Country: US
Vessel Model: IG 30
Join Date: Nov 2016
Posts: 249
If you have the radar on it's probably already poor visibility so you won't lose any by moving to lower helm. You should be a minimum of 1 meter from the center beam of an RD218 and you shouldn't look directly into the beam.

I would guess the mast mount is keeping the beam well above your head.
SoWhat is offline   Reply With Quote
Old 12-11-2017, 09:58 PM   #8
Senior Member

Sabre602's Avatar

City: NW Washington State
Country: United States
Vessel Name: Kingfisher
Vessel Model: 37' converted crabber
Join Date: Oct 2017
Posts: 151
Quote:
Originally Posted by seattleboatguy View Post
...If I purchased a radiation dosimeter at Walmart, would that tell me if a helmsman on my fly bridge is getting dangerously high radiation from the radar?
Not unless you have a super-scary radar that emits x-rays or gamma radiation!
__________________
Anson & Donna

Be kind whenever possible. It is always possible. ~The Dalai Lama
Sabre602 is offline   Reply With Quote
Old 12-12-2017, 12:11 AM   #9
Senior Member

boomerang's Avatar

City: Kilmarnock VA
Country: united states
Vessel Name: YellowBird
Vessel Model: 1978 Mainship m1 #149
Join Date: Apr 2016
Posts: 276
Dude! You're in Norfolk VA, home of the worlds largest navel fleet, with cruisers, destroyers ,tankers and assorted aircraft all sporting radar's with who-knows how many kilowatts of power output! I wouldn't worry too much about the health hazards of your little 4kW x-band unit. Just a short trip across the Elizabeth river probably exposes you to more radiation from other radars than yours outputs in a lifetime.
Hell, the microwave you have in your galley is probably almost as much power as a small radar & we'll stand right in front of them nonchalantly waiting for our popcorn to pop!
__________________
-Shawn-

https://shawnandlizboats.blogspot.com/
boomerang is offline   Reply With Quote
Old 12-12-2017, 01:02 AM   #10
Guru

BandB's Avatar

City: Fort Lauderdale
Country: USA
Join Date: Jan 2014
Posts: 14,193
Quote:
Originally Posted by Benthic2 View Post
you should never leave anything as important as your family's health to an internet forum....

but..

The Canadian Coast Guard has a brochure their marine radar that says the safe distance is .2 meters.

http://www.bcmea.com/CMS_Content/HS_..._June_2013.pdf

and....

a beam that is 12 degrees does not reach your helm.
One other piece of information that shouldn't apply but can. The above distance is based on a radar transmitting while rotating. One of the reasons for minimum risk is that it's not in one place long. Now, most radars today will not transmit when stationary, but there have been instances of technicians locking them and testing. If transmitting in a stationary position, the distance is 6 meters. So, just be wary and don't allow that to take place, if your unit will even do it.
BandB is online now   Reply With Quote
Old 12-12-2017, 01:21 AM   #11
Guru

BandB's Avatar

City: Fort Lauderdale
Country: USA
Join Date: Jan 2014
Posts: 14,193
Furuno actually has more extensive warnings and show distances at which you'd have 10 W/sq meter and 100 W/sq meter. The maximum distance they show 100 W is .5 meter as it varies by radar. However, they show 10 W up to 5.3 meter. They comment that if it's installed at a close distance in front of yout wheelhouse, you may need to halt transmission over a sector of it's revolution. So, variable answers and I would confirm with my radar manufacturer. We have radars of all sizes and shapes and some require 4 times the distance of others.

The table I'm talking about is on page 2 of this document.

http://www.furuno.com/files/Manual/1..._4D_4A-25A.pdf
BandB is online now   Reply With Quote
Old 12-12-2017, 03:17 AM   #12
Guru

High Wire's Avatar

City: Cape May, NJ and Englewood, FL
Country: USA
Vessel Name: Irish Lady
Join Date: Dec 2007
Posts: 1,852
To SBG:
No and no.
__________________
Archie
1984 Monk 36 Hull #46
Englewood, FL and Cape May, NJ
High Wire is online now   Reply With Quote
Old 12-12-2017, 05:17 AM   #13
Veteran Member

Join Date: Jun 2015
Posts: 82
I run mine only in low visibility such as night or fog. Yours is up on the mast like mine. 12.5 degrees down keeps it well above your head on the bridge helm.
Joebad is offline   Reply With Quote
Old 12-12-2017, 05:49 AM   #14
Guru

angus99's Avatar

City: Signal Mtn., TN
Country: US
Vessel Name: Stella Maris
Vessel Model: Defever 44
Join Date: Feb 2012
Posts: 1,546
This is another pretty good discussion of the subject, written in plain English.

WHO | Electromagnetic fields and public health: radars and human health

According to this, the power density needed to produce known health effects is 1000 Watts/Square meter. The Furuno table posted by bandb lists power densities that are fractions of that threshold.

Bottom line, according to the WHO: for modern marine radars, if you’re not staring into the beam and are a meter or so away from the antenna, the risks are minuscule.

Quoting:

  • To produce any adverse health effect, RF exposure above a threshold level must occur. The known threshold level is the exposure needed to increase tissue temperature by at least 1oC. The very low RF environmental field levels from radar systems cannot cause any significant temperature rise.
  • To date, researchers have not found evidence that multiple exposures to RF fields below threshold levels cause any adverse health effects. No accumulation of damage occurs to tissues from repeated low level RF exposure.
  • At present, there is no substantive evidence that adverse health effects, including cancer, can occur in people exposed to RF levels at or below the limits set by international standards. However, more research is needed to fill certain gaps in knowledge.
angus99 is online now   Reply With Quote
Old 12-12-2017, 05:54 AM   #15
Guru

psneeld's Avatar

City: Avalon, NJ
Country: USA
Vessel Name: Freedom
Vessel Model: Albin 40
Join Date: Oct 2011
Posts: 16,832
The Furuno radar techs at manufacturer training for electronic installers answered my specific question about this....

He said your head would get hit by the turning array before you were close enough to do any harm.

The safety warnings are great and way overkill usually because in the case of these small radarrs the warnings can be overkill without affecting the vast majority of practical installations.
psneeld is offline   Reply With Quote
Old 12-12-2017, 06:39 AM   #16
Guru

Pgitug's Avatar

City: Punta Gorda, fl
Country: Usa
Vessel Name: Escapade
Vessel Model: Nordic Tug 37 2002
Join Date: Jan 2015
Posts: 1,052
I was on the Carl Vinson carrier during a tiger cruise. I had to wrap my video camera in foil otherwise horizontal lines appeared at every sweep of the ships radar.
Pgitug is offline   Reply With Quote
Old 12-12-2017, 07:16 AM   #17
Guru

caltexflanc's Avatar

City: North Carolina for now
Country: USA
Vessel Name: Small Incentive
Vessel Model: Boston Whaler 130 Sport
Join Date: Aug 2011
Posts: 4,089
To answer the OP, the answer is no, don't worry about it, especially with that radar. Went through this discussion with the Furuno guys when we toyed with the idea of adding a second radar in addition to the 6kw open array unit already on the arch. It's good practice to use it when conditions are clear, as discussed in another thread. That way you can really learn how to use and interpret it when visibility is awful.
__________________
George

"There's the Right Way, the Wrong Way, and what some guy says he's gotten away with"
caltexflanc is offline   Reply With Quote
Old 12-12-2017, 07:28 AM   #18
Senior Member

City: Norfolk, VA
Country: USA
Vessel Name: Slow Bells
Vessel Model: Marine Trader 38
Join Date: Nov 2013
Posts: 215
Quote:
Originally Posted by BandB View Post
Furuno actually has more extensive warnings and show distances at which you'd have 10 W/sq meter and 100 W/sq meter. The maximum distance they show 100 W is .5 meter as it varies by radar. However, they show 10 W up to 5.3 meter. They comment that if it's installed at a close distance in front of yout wheelhouse, you may need to halt transmission over a sector of it's revolution. So, variable answers and I would confirm with my radar manufacturer. We have radars of all sizes and shapes and some require 4 times the distance of others.

The table I'm talking about is on page 2 of this document.

http://www.furuno.com/files/Manual/1..._4D_4A-25A.pdf
That's good information. It sounds like Furuno's manual may be more helpful than the manual that came with my Garmin "GMR 18 HD". One of the interesting things about the Garmin manual is that they first say that the beam is 12.5 degrees above and below horizontal. Later, they say "a radar beam can normally be assumed to spread 25 degrees above and below". It seems a little confusing. Also confusing (to me at least) was the "IEEE C95.1-1992" spec they reference. That 108 page spec never mentions the word "radar". The Garmin manual does say to keep your compass and VHF cables 1 meter from the radar dome, and also to keep your SSB, electronics and cables more than 2 meters from the path of the radar beam.

seattleboatguy is offline   Reply With Quote
Old 12-12-2017, 08:25 AM   #19
Guru

Ski in NC's Avatar

City: Wilmington, NC
Country: USA
Vessel Name: Louisa
Vessel Model: Custom Built 38
Join Date: Jan 2014
Posts: 4,122
Just to clarify a bit: a dosimeter measures ionizing radiation (basically gamma, xray) which is very high energy. Can actually knock electrons out of orbits. Radar radiation is microwave frequency radio frequency which is no where near enough energy to ionize. Dosimeter won't pick it up.
Ski in NC is offline   Reply With Quote
Old 12-12-2017, 08:39 AM   #20
Guru

djmarchand's Avatar

City: East Greenwich, RI
Country: USA
Vessel Name: Bella
Vessel Model: Mainship Pilot 34
Join Date: Aug 2012
Posts: 3,180
Quote:
Originally Posted by Benthic2 View Post
and....

a beam that is 12 degrees does not reach your helm.
This observation seems to have gotten lost in the ensuing chatter. If you were standing up on your tiptoes way forward near the windscreen with your head touching the forward part of the bimini, you might be in the radar beam. But then you would be about 10 feet away from it.

So your radar installation looks quite safe to me.

David
__________________

djmarchand is offline   Reply With Quote
