Old 12-11-2018, 08:06 PM   #61
Enigma

RT Firefly's Avatar

City: Slicker?
Country: Bumpkin?
Join Date: Oct 2007
Posts: 11,853
Greetings,
Mr. PNW. ER venting is down the road. I was referring to the spaces encapsulated by the insulation and the current floor. NOW is the time to put ventilation holes/ducts in the stingers AND add limber holes in the stingers so any and all water can drain and dry out. Don't mean to be critical but I would hate for you to have a mold or rot problem.
__________________
Advertisement

__________________
RTF
RT Firefly is online now   Reply With Quote
Old 12-11-2018, 10:37 PM   #62
Veteran Member

City: Terrace, BC
Country: Canada
Join Date: Aug 2018
Posts: 69
Hi RT, your concerns are appreciated, and I hope I can address most of them here.

For anyone else following along, please note that I am doing my best to follow the Canada small vessel construction regulations.

https://www.tc.gc.ca/eng/marinesafet...2-menu-521.htm

Enclosed space has access.
Click image for larger version

Name:	IMG_0329.jpg
Views:	50
Size:	97.7 KB
ID:	83392

The bow enclosed space has 2 holes going to the central bilge, plus on either side there are 2 ventilation holes going to under the floor of the forward cabin.Additionally, the space under the floor is open to the bilge.
Click image for larger version

Name:	IMG_0324.jpg
Views:	51
Size:	92.8 KB
ID:	83393

There is venting and drain holes through the main beam (on both sides)
Click image for larger version

Name:	IMG_0326.jpg
Views:	52
Size:	97.5 KB
ID:	83394

All the floor timbers have two holes (inboard/outboard) to promote good circulation.
Click image for larger version

Name:	IMG_0328.jpg
Views:	51
Size:	109.1 KB
ID:	83395

What we won't see yet is vents that go from outside the boat to the bow space.
I need to do some research (type) and calculation (size) before I can do that.

I hope this helps, and once again thanks for taking the time.
__________________

PNW Drifter is offline   Reply With Quote
Old 12-11-2018, 10:45 PM   #63
Enigma

RT Firefly's Avatar

City: Slicker?
Country: Bumpkin?
Join Date: Oct 2007
Posts: 11,853
__________________
RTF
RT Firefly is online now   Reply With Quote
Old 01-04-2019, 11:14 PM   #64
Veteran Member

City: Terrace, BC
Country: Canada
Join Date: Aug 2018
Posts: 69
Things are going to start looking like a boat.....

Added more curve and height to the front. Bulkheads trimmed to height.
Click image for larger version

Name:	IMG_1197.jpg
Views:	43
Size:	153.6 KB
ID:	83888

Test fitting the roof.
Click image for larger version

Name:	IMG_1196.jpg
Views:	42
Size:	106.8 KB
ID:	83889


Roof is on the fore cabin.....
Click image for larger version

Name:	IMG_1222.jpg
Views:	42
Size:	145.0 KB
ID:	83890
PNW Drifter is offline   Reply With Quote
Old 01-04-2019, 11:20 PM   #65
Veteran Member

City: Terrace, BC
Country: Canada
Join Date: Aug 2018
Posts: 69
Couple more pictures.

Click image for larger version

Name:	IMG_1226.jpg
Views:	38
Size:	101.9 KB
ID:	83891

Click image for larger version

Name:	IMG_1227.jpg
Views:	39
Size:	125.8 KB
ID:	83892
PNW Drifter is offline   Reply With Quote
Old 01-10-2019, 08:01 PM   #66
Veteran Member

City: Terrace, BC
Country: Canada
Join Date: Aug 2018
Posts: 69
Sound control- I really dislike diesel valve clatter. I don't expect to make the engine silent, but anything will be an improvement from how loud it was. I'll have to monitor engine box temperatures (and the exhaust area) on sea trials, but I plan on having a massive cold air intake to feed the hole.

Floor will be above the box and nothing attached to the box itself, with an air gap inbetween (aka double wall).

Click image for larger version

Name:	IMG_1234.jpg
Views:	46
Size:	145.5 KB
ID:	84130

Click image for larger version

Name:	IMG_1246.jpg
Views:	43
Size:	120.1 KB
ID:	84131
PNW Drifter is offline   Reply With Quote
Old 01-10-2019, 09:25 PM   #67
Veteran Member

Flybull's Avatar

City: USA
Country: United States
Join Date: Dec 2018
Posts: 74
sub'd.
Flybull is online now   Reply With Quote
Old 01-10-2019, 09:47 PM   #68
Guru

O C Diver's Avatar

City: Fort Myers, FL... Summers in Crisfield, MD
Country: USA
Vessel Name: Slow Hand
Vessel Model: Cherubini Independence 45
Join Date: Dec 2010
Posts: 6,601
Curious if you are sealing the bottoms of the plywood for the deck sections. Plywood can absorb moisture and rot. Plywood that doesn't rot, still gains weight from the moisture it absorbs.

Ted
__________________
Blog: mvslowhand.com
I'm tired of fast moves, I've got a slow groove, on my mind.....
I want to spend some time, Not come and go in a heated rush.....
"Slow Hand" by The Pointer Sisters
O C Diver is offline   Reply With Quote
Old 01-13-2019, 10:38 AM   #69
Guru

ben2go's Avatar

City: Upstate,SC
Country: USA
Join Date: May 2012
Posts: 1,720
Quote:
Originally Posted by PNW Drifter View Post
Sound control- I really dislike diesel valve clatter. I don't expect to make the engine silent, but anything will be an improvement from how loud it was. I'll have to monitor engine box temperatures (and the exhaust area) on sea trials, but I plan on having a massive cold air intake to feed the hole.

Floor will be above the box and nothing attached to the box itself, with an air gap inbetween (aka double wall).

Attachment 84130

Attachment 84131
Nice work.



The clatter usually heard from diesels is the injectors and injection pump popping open to spray fuel into the cylinders. The pressure builds up between 1500 to 3000 psi before the injector pops open to spray fuel. Newer common rail electronic diesels don't have the same sound. They can give off a little compression knock when under load.
__________________


ben2go is offline   Reply With Quote
Old 01-13-2019, 10:52 AM   #70
Veteran Member

City: Terrace, BC
Country: Canada
Join Date: Aug 2018
Posts: 69
Quote:
Originally Posted by O C Diver View Post
Curious if you are sealing the bottoms of the plywood for the deck sections.
Ted
Hi Ted, yes I am. All wood is epoxy coated on all sides. Further to that, any joints are coated on both surfaces prior to joining, before being filleted and taped.

I also have a dehumidifier running in my workshop, to keep the typically high Pacific Northwest humidity levels at a respectable level in my workshop (40 -50% relative humidity).


Ben2Go, thanks for your compliment. Maybe at some point I'll be able to repower with a new, quieter diesel.
PNW Drifter is offline   Reply With Quote
Old 01-22-2019, 07:09 PM   #71
Veteran Member

City: Terrace, BC
Country: Canada
Join Date: Aug 2018
Posts: 69
Pilot house floor and middle bulkheads.
Click image for larger version

Name:	IMG_0805.jpg
Views:	41
Size:	96.0 KB
ID:	84532

Detail of oak strip in-between the bulkheads
Click image for larger version

Name:	IMG_E1326.jpg
Views:	42
Size:	101.8 KB
ID:	84533

Perspective shot.
Click image for larger version

Name:	IMG_1324.jpg
Views:	43
Size:	125.4 KB
ID:	84534

Access to engine. I made a mistake and ended up having to cut a new piece of marine ply that didn't match tone wise as nicely, and the grain isn't going the way I wanted. Measure twice cut once.
Click image for larger version

Name:	IMG_E1327.jpg
Views:	43
Size:	78.6 KB
ID:	84535

I reluctantly put in this support, as it was needed.
Click image for larger version

Name:	IMG_1330.jpg
Views:	48
Size:	106.9 KB
ID:	84536

Exhaust surround
Click image for larger version

Name:	IMG_1328.jpg
Views:	43
Size:	124.3 KB
ID:	84537

Under the floor panel, 2 red straps for removing the noise control.
Click image for larger version

Name:	IMG_E1334.jpg
Views:	41
Size:	105.6 KB
ID:	84538

Detail on the front.
Click image for larger version

Name:	IMG_1333.jpg
Views:	33
Size:	57.2 KB
ID:	84539

Access to side(s) of engine and front of engine. I haven't got covers for these yet.
Click image for larger version

Name:	IMG_1331.jpg
Views:	31
Size:	84.9 KB
ID:	84540

Next will be the pilot house.... things will really get cooking!
PNW Drifter is offline   Reply With Quote
Old 01-22-2019, 07:16 PM   #72
Senior Member

Doug's Avatar

City: Victoria, BC
Country: Canada
Vessel Name: Timeless
Vessel Model: CHB 34
Join Date: Aug 2009
Posts: 176
Nice work. I’m enjoying watching your progress.
Doug is offline   Reply With Quote
Old 02-01-2019, 02:52 PM   #73
Veteran Member

City: Terrace, BC
Country: Canada
Join Date: Aug 2018
Posts: 69
Pilot house

A little less imagination is needed to get a sense of what its going to look like.....

Unfortunately, I'm now in wood conservation mode - minimize waste - and so the main front window panels were scarfed from smaller pieces. I could have stick framed the front, but by using panels, it made sure that each pane (or panel) would be flat. I'm not sure if the effort of scarfing was worth it.

FYI, figuring out the multi-angle pieces of wood to make the pilot house front window section made my brain explode.
Click image for larger version

Name:	IMG_1349.jpg
Views:	39
Size:	113.4 KB
ID:	84822

The belt sander and angle grinder, along with the rocks, and the duct taped frame are holding the panels into position.
Click image for larger version

Name:	IMG_1346.jpg
Views:	40
Size:	102.5 KB
ID:	84823

Click image for larger version

Name:	IMG_1344.jpg
Views:	37
Size:	105.3 KB
ID:	84824

Temporary post supporting the front cabin roof as the weight of the front panels is added. Once carbon fibre'd into place, the window frame becomes a supportive structure (like a suspension bridge), and the post isn't needed.
Click image for larger version

Name:	IMG_1343.jpg
Views:	39
Size:	102.5 KB
ID:	84825
PNW Drifter is offline   Reply With Quote
Old 02-01-2019, 06:35 PM   #74
Guru

O C Diver's Avatar

City: Fort Myers, FL... Summers in Crisfield, MD
Country: USA
Vessel Name: Slow Hand
Vessel Model: Cherubini Independence 45
Join Date: Dec 2010
Posts: 6,601
Playing devil's advocate, if the exhaust leaks outside the engine box and under the floor, where does it go? Also seems like a lot of trapped heat below the floor. Is it possible to get some of the combustion air coming down around the exhaust, under the floor, and into the engine box?

Ted
__________________
Blog: mvslowhand.com
I'm tired of fast moves, I've got a slow groove, on my mind.....
I want to spend some time, Not come and go in a heated rush.....
"Slow Hand" by The Pointer Sisters
O C Diver is offline   Reply With Quote
Old 02-01-2019, 06:40 PM   #75
Guru

MurrayM's Avatar

City: Kitimat, North Coast BC
Country: Canada
Vessel Name: Badger
Vessel Model: 30' Sundowner Tug
Join Date: Jul 2012
Posts: 4,352
Got a good heater? Is your shop out of the wind? Supposed to be -18C (0F) with 45 knot northerly outflow winds here tomorrow
__________________
"The most interesting path between two points is not a straight line" Murray Minchin
MurrayM is offline   Reply With Quote
Old 02-01-2019, 10:25 PM   #76
Veteran Member

City: Terrace, BC
Country: Canada
Join Date: Aug 2018
Posts: 69
Quote:
Originally Posted by O C Diver View Post
Playing devil's advocate, if the exhaust leaks outside the engine box and under the floor, where does it go? Also seems like a lot of trapped heat below the floor. Is it possible to get some of the combustion air coming down around the exhaust, under the floor, and into the engine box?

Ted
Hi Ted, thanks for posting. Yes, I’m concerned about heat, but I plan on having good ventilation. The engine box is open on all four sides along the bottom, and has a large opening for cold fresh air on the intake side. I will have a dedicated ram air duct from the outside (port side) feeding this. On the exhaust side (starboard) there is venting around the turbo outlet exhaust pipe, which then vents upwards through where the muffler is. The muffler will be in a heat shielding box, which is also vented. The Venturi Effect should pull hot air out when the vessel is under way.

Across the boat engine specific venting (port to starboard):

ram air inlet -duct-port compartment-airfeed hole in engine box-engine box-exhaust vent (it’s open around the exhaust pipe)-starboard compartment-vent thru muffler pipe hole (open around the pipe) through floor-muffler box-outside

Additionally, there will be the traditional (and substantial) fore-aft venting, which will draw warm air from beneath the engine box, and also keep the bilge area cool.

Of course, it hasn’t all been built yet.

I do absolutely think about the heat, and I will have temperature sensors in the box, which I will keep a close eye on during sea trials. Should temps get hot, I’ll have to add more venting.

Nice boat Ted. One day I hope to do the ICW loop.

Quote:
Originally Posted by MurrayM View Post
Got a good heater? Is your shop out of the wind? Supposed to be -18C (0F) with 45 knot northerly outflow winds here tomorrow
Hi Murray, my workshop is heated, and insulated. I appreciate your concerns.. At least we aren’t as cold as other parts of North America.
PNW Drifter is offline   Reply With Quote
Old 02-01-2019, 11:34 PM   #77
Guru

Nomad Willy's Avatar

City: Concrete Washington State
Country: USA
Vessel Name: Willy
Vessel Model: Willard Nomad 30'
Join Date: Oct 2007
Posts: 15,167
Drifter,
Did you determine if your boat was a re-power or what? I've seen numerous Farrell boats that had a Volvo OD in the stern. Have you looked carefully to see if you're transom had an OD through it? Could be you'll be needing lots of weight aft for good trim/balance.
I really like the way you shaped the foredeck and lower cabin front. Looks very nice. I woulda slanted the wheelhouse windows the other way if for nothing else but to gain significant "dashboard" space.
My father built/had built this 36' boat and made everything "Skokoum" and when it was done the 6-71 could barely push her past 9 knots. Had a FB on then too.
Picture was taken by me in Craig.
Attached Thumbnails
Click image for larger version

Name:	DSCF0203 copy.jpg
Views:	37
Size:	151.9 KB
ID:	84850
__________________
Eric

North Western Washington State USA
Nomad Willy is offline   Reply With Quote
Old 02-02-2019, 06:58 AM   #78
Guru

O C Diver's Avatar

City: Fort Myers, FL... Summers in Crisfield, MD
Country: USA
Vessel Name: Slow Hand
Vessel Model: Cherubini Independence 45
Join Date: Dec 2010
Posts: 6,601
Quote:
Originally Posted by PNW Drifter View Post
Hi Ted, thanks for posting. Yes, Iím concerned about heat, but I plan on having good ventilation. The engine box is open on all four sides along the bottom, and has a large opening for cold fresh air on the intake side. I will have a dedicated ram air duct from the outside (port side) feeding this. On the exhaust side (starboard) there is venting around the turbo outlet exhaust pipe, which then vents upwards through where the muffler is. The muffler will be in a heat shielding box, which is also vented. The Venturi Effect should pull hot air out when the vessel is under way.

Across the boat engine specific venting (port to starboard):

ram air inlet -duct-port compartment-airfeed hole in engine box-engine box-exhaust vent (itís open around the exhaust pipe)-starboard compartment-vent thru muffler pipe hole (open around the pipe) through floor-muffler box-outside

Additionally, there will be the traditional (and substantial) fore-aft venting, which will draw warm air from beneath the engine box, and also keep the bilge area cool.

Of course, it hasnít all been built yet.

I do absolutely think about the heat, and I will have temperature sensors in the box, which I will keep a close eye on during sea trials. Should temps get hot, Iíll have to add more venting.

Nice boat Ted. One day I hope to do the ICW loop.



Hi Murray, my workshop is heated, and insulated. I appreciate your concerns.. At least we arenít as cold as other parts of North America.
Hope your plan works. The engine is a high volume vacuum machine and may negate any ventilation (such as the exhaust duct) designed to go away from it.

Keep posting pictures!

Ted
__________________
Blog: mvslowhand.com
I'm tired of fast moves, I've got a slow groove, on my mind.....
I want to spend some time, Not come and go in a heated rush.....
"Slow Hand" by The Pointer Sisters
O C Diver is offline   Reply With Quote
Old 02-02-2019, 10:48 AM   #79
Veteran Member

City: Terrace, BC
Country: Canada
Join Date: Aug 2018
Posts: 69
Quote:
Originally Posted by Nomad Willy View Post
Drifter,
Did you determine if your boat was a re-power or what? I've seen numerous Farrell boats that had a Volvo OD in the stern. Have you looked carefully to see if you're transom had an OD through it? Could be you'll be needing lots of weight aft for good trim/balance.
I really like the way you shaped the foredeck and lower cabin front. Looks very nice. I woulda slanted the wheelhouse windows the other way if for nothing else but to gain significant "dashboard" space.
My father built/had built this 36' boat and made everything "Skokoum" and when it was done the 6-71 could barely push her past 9 knots. Had a FB on then too.
Picture was taken by me in Craig.
Hi Eric, thanks for posting and thanks for your positive comments on the foredeck shaping. I'm going for a "salty" look, the design a bit of a tip of the hat to the raised pilothouse tugs (and shamelessly copied from the North Pacific 28/ Sundowner 30 ). I do not want to go through all this work to end up with some kind of landlubber homemade monstrosity made with home depot parts! Your opinion helps confirm I'm going in the right direction. BTW, I like your boat too, similar to the Devlin Surf Scoter I was going to build (still have the plans....).

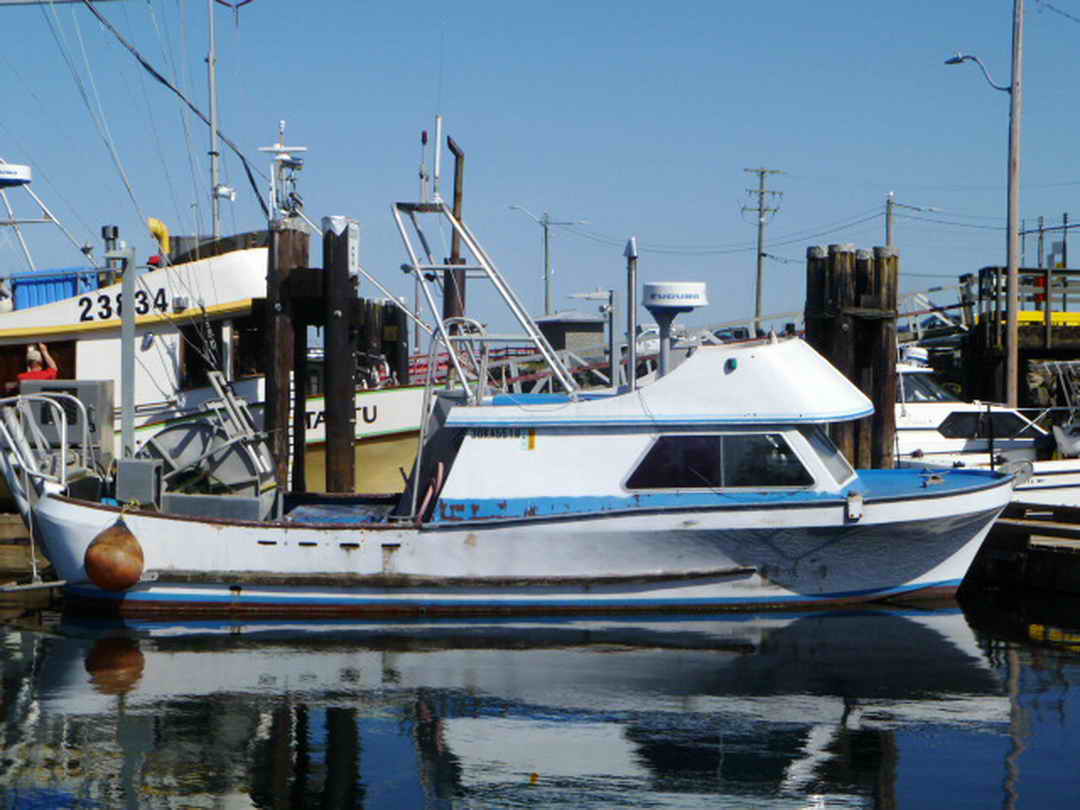

My boat is an ex-gillnetter, would have looked kinda like this:

It definitely didn't have a stern drive or engine in the rear. It came out of the mould as a purpose built inboard with shaft drive and hydraulic rudder (and mini keel). The gillnet drum and fish holds took up the bulk of the rear space.

Those boats were made in the mid to late 70's, and yet the Volvo AD41B is from the mid 80's to early 90's. I'm thinking its re-powered (but I could be wrong), with the same inboard configuration.

The forward slant of the wheelhouse windows is that way for the simple reason that there will be less direct sunlight (think greenhouse - think hot car dashboard) entering the pilot house when the sun is directly overhead. Might be easier to see the screen of the chart plotter on one of those rare sunny PNW days.

I agree with you on weight bias/hull trim, and I'm biasing weight to the rear, but I have limited options for doing that. Fuel tanks are already as far back as practical, and I will have the batteries (heavy!) located at the very back too, and run 4/0 from the batteries forward. I can put water tanks at the back below the floor.

Before the refit, I can say that this boat wasn't fast (I doubt it made even 10kn at full rpm), but I am certain that my construction will be lighter than what was there before (if only because all the waterlogged foam is gone!). Your dad's Islander looks nice too, to my eye a bit of east coast lobster boat from that angle.
PNW Drifter is offline   Reply With Quote
Old 02-02-2019, 12:53 PM   #80
Guru

Nomad Willy's Avatar

City: Concrete Washington State
Country: USA
Vessel Name: Willy
Vessel Model: Willard Nomad 30'
Join Date: Oct 2007
Posts: 15,167
Haha good eye Drifter,
Dad had the boat built in Maine by a well known builder. He was on the phone w him often telling the builder to build it heavier. He loved the word skookum and never missed the chance to employ it.

Re your boat you’re doing a great job rebuilding and re-fitting her. Planing, methods, re-design and even enthusiasm is great. Love to see it.
She sits nice on her lines if the painted AF is “her line”.
Good that you’ve thought of the CG and have some plans to control it. Many manufacturers use aft (in the laz) fuel tanks but if one uses much fuel there goes the CG. Perhaps designers feel that more often tanks will be somewhat full and seldom will be near empty. Ask a NT 32 owner that is design savy.
A thought I have may work well (but not wonders) and that is to split the fuel tankage between two or three smaller tanks. Say 40% aft and two roughly 30% well fwd approximately amidships. You would need to transfer fuel fwd (w transfer pumps) fairly often unles you didn’t go very far. And eventually you’d wind up w a light stern. Would be hard to handle in significant following seas.
And if you’re like us and use little fresh water that tank could go aft. I have a 30’ boat w 100 gal of water in the laz. Works great for us but we use little fresh water. So we’re always in trim. We cook w water from jugs stowed here and there.
But at this point you’ve got lots of room to play w and lots of posibilities.

Re the fwd slant windows I’m not a fan of the practice or the odd (IMO) look. There are good things about the fwd slant windows and all of my thinking is not opinion. Do a search if you’re interested. TF has had that discussion fully in the past. And I approve of my windows that basically don’t slant. The boat would look silly either other way.

But you’re off to a very good start that probably feels like more than that to you now. I’ll keep check’in on ya.~_
__________________

__________________
Eric

North Western Washington State USA
Nomad Willy is offline   Reply With Quote
Reply

Thread Tools Search this Thread
Search this Thread:

Advanced Search
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off





All times are GMT -5. The time now is 08:40 AM.


Powered by vBulletin® Version 3.8.8 Beta 4
Copyright ©2000 - 2019, vBulletin Solutions, Inc.
Search Engine Optimization by vBSEO 3.6.0
Copyright 2006 - 2012
